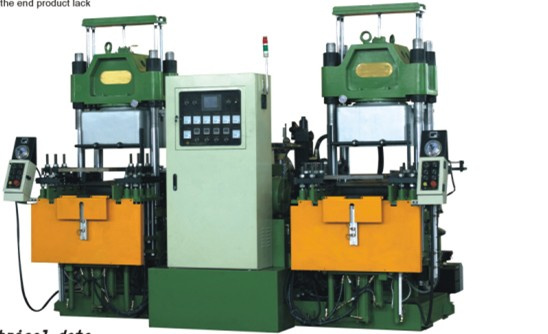

The vacuum heat presses to model the machine
Suits produces each kind of o circle, the rubber keyboard, the medical service with the rubber components, rubber components and so on rubber components, the most economical tradition, the most economical tradition, the operation is simple, takes shape fast, may choose for three molds leaving,
Characteristics:
ZXB the machine structure after the analysis, the service life is long-time:
The special heating platen design, the temperature distribution is even, guarantees takes shape the quality disposable:
The fluctuation track organization, guarantees the sliding platen does not rub:
The high efficiency fast vacuum system, the end product lack materials, the z gas-free does not soak,
Hydraulic system:
The hydraulic pressure unit and an organism body, the design are artistic, not oil leak, also may choose the proportion type,
Electrical system:
PLC matches touches the screen control, enhances the product quality stability.
Type |
Data |
Mold-locking force |
200TON |
250TON |
Max working press |
210Kg/cm 2 |
210Kg/cm 2 |
Main engine piston diameter |
Φ 360mm |
Φ 400mm |
Mav. stroke |
250mm |
250mm |
Opens the files most greatly |
300mm |
300mm |
Motor power |
18.3kw*2 |
18.3kw*2 |
Thermo plate dimension |
505*510mm |
570*570mm |
Mold frame plate size |
500*500mm |
540*540mm |
Mold use thickness |
50~150mm |
50~150mm |
Main engine horsepower |
15HPX6P(11.2kw) |
15HPX6P(11.2kw) |
Vacuum horsepower |
VC-75(1.85kw/50Hz) |
VC-75(1.85kw/50Hz) |
Fuel tank volume |
600L |
600L |
