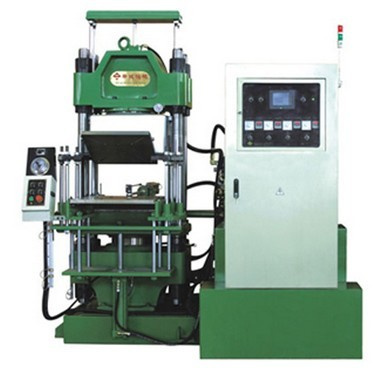

Rubber Vacuum Heat Molding Press
The hydraulic pressure unit and an organism body, the design are artistic,
Not oil leak, also may choose the proportion type.
Suits produces each kind of O circle, the rubber keyboard, the medical
Service with the rubber components, rubber components and so on rubber
Components, the most economical tradition, the operation is simple, takes
Shape fast, may choose for three molds leaving.
Characteristics:
The machine structure after the computer pressure, the strain analysis,
The service life is long-time;
The special heating platen design, the temperature distribution is even,
Guarantees takes shape the quality disposable;
The fluctuation track organization, guarantees the sliding panel and the
Heating platen does not rub;
The high efficiency fast vacuum system, the end product lack materials, the
Gas-free does not soak.
Hydraulic system
The hydraulic pressure unit and an organism body, the design are artistic,
Not oil leak, also may choose the proportion type.
Electrical system
PLC matches touches the screen control, enhances the product quality
Stability.
| Specification | Parameters | Specification | Parameters | Specification | Parameters |
| Mold-locking force | 200 TON | Opens the files most greatly | 300mm | Mold use thickness | 50~150mm |
| Max.working pressure | 210 kg/cm 2 | Motor power | 18.3kwx2 | Main engine horsepower | 15HPX6P(11.2KW) |
| Main engine piston diameter | 360mm | Thermo plate dimension | 505×510mm | Vacuum horsepower | VC-75(1.85KW/50Hz) |
| Max.stroke | 250mm | Mold frame plate size | 500×500mm | Fuel tank volume | 700L |
Qingdao Huicai Machine Manufacture Co., Ltd. is a joint-stock enterprise founded based on former Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, it has over ten years' history in manufacturing rubber machinery. It is a specialized manufacturer integrating research and manufacture of various specifications of plate press, rubber mixing mill etc. Rubber machinery and tyre machinery. Due to its rich technical force, advanced manufacturing technology, complete test means and quality after-sales service, the company enjoys good reputation in this industry of China. Its products enjoy a very high reputation in the domestic and international market.
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Our company will continue to persist in the principle of "Win by Excellence, Credit first, Customer Oriented" and considerate and best after-sales service. We sincerely welcome worldwide customers come to our company for negotiation, and invite people with lofty ideals to join us to create great undertaking together.
