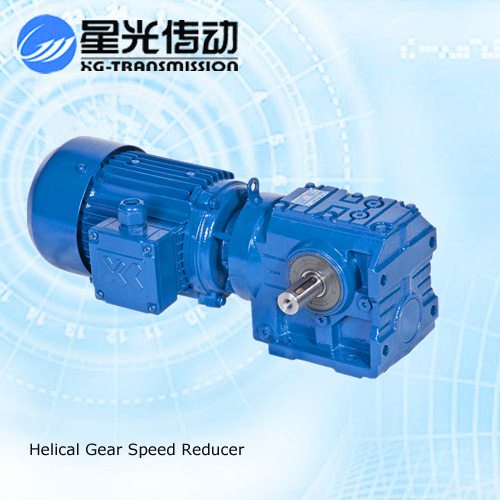

S Series Helical Worm Gear Reducer
Product Advantages:
1.R/F/K/S series gear reducers are optimized and designed according to international standard
2.High precision, high efficiency, fine classification in transmission ratio, wide range, large transmission torque, reliable performance, low noise, flexible installation, and convenient use and maintenance.
3.They are widely used in various low-speed transmissions, which are general basic parts of mechanical transmission.
Technical parameters:
| Housing (mono-block) | HT250 (cast iron) |
| Gear Pair | 20CrMnTi |
| Input/Output shaft material | 40CrMo Alloy steel |
| Motor shaft | 40Cr |
| Housing Hardness | HBS90-240 |
| Finish | Caburizing & Quenching |
| Design | Modularly designed , easy for exchangement with SEW product |
| Lubrication | VG220 |
| Bearing Brands | HRE,CU,NSK, SKF, etc |
| Oil Seal Brands | NAK,TTO,or others designated by customers |
| Model(7) | S37\S47\S57\S67\S77\S87\S97 |
| Ratio | 6.8-288 |
| Input Power | 0.12-22kW |
| Output Torque | 11-4530N.m |
| Output Speed | 4.86-206 RPM |
| Gear Accuracy | 6 to 4 Grade |
| Gear Surface hardness | HRC58°-62° |
| Input/Output shaft hardness | HRC25°-30° |
| Noise(Max) | 60-68dB |
| Tem.rise(Max) | 40°C |
| Tem.rise(Oil Max) | 50°C |
| Vibration | ≤20um |
| Backlash | ≤20Arcmin |
| Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
| Mounting Position | Foot / Flange Mounting |
| Motor | IP55 |
| Certification | CE, ISO |

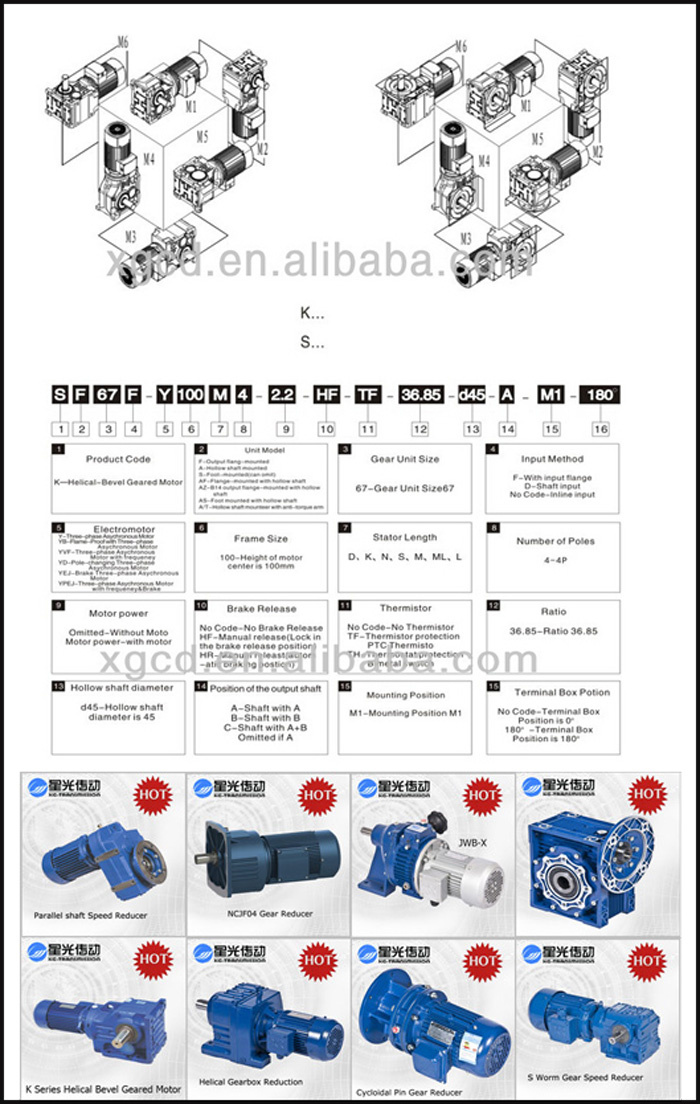

Model Designation+Mounting position:

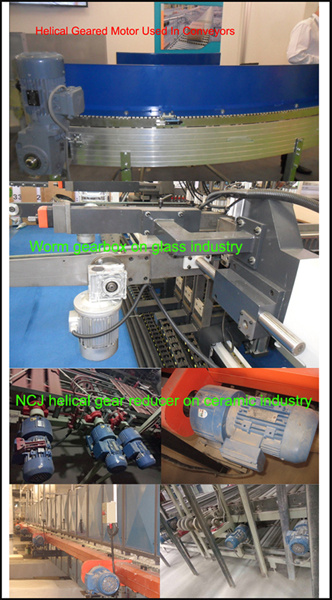

Applications:
Products are widely used in ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.
Why US?
1.The Foshan XG-TRANSMISSION Machinery Co., Ltd is State-owned Xingguanggong Mold Factory, a state-owned military industrial enterprise established in 1965. It completed reform in 2002.
2.The company has a strong technical force. It has more than 400 employees at present, including more than 40 engineering technicians and 10 experts and senior engineers enjoying special allowances of the State Council.
3. Since reform, the company has developed rapidly. It took the lead in passing ISO9001 International Quality System Certificate and International Quality Credit AAA++ Certificate in 2004, and Swiss SGS Certificate in 2009. It has won such titles as "Iconic Brand in Chinese Electromechanical Industry", "Famous Brand of Guangdong Province", "Non-public Scientific and Technological Enterprise in Guangdong Province", "National High and New-tech Enterprise", and "Tope 50 in Chinese Gear Industry" successively, which has been listed in the formation plan of "2011 Foshan Engineering and Technological R&D Center".

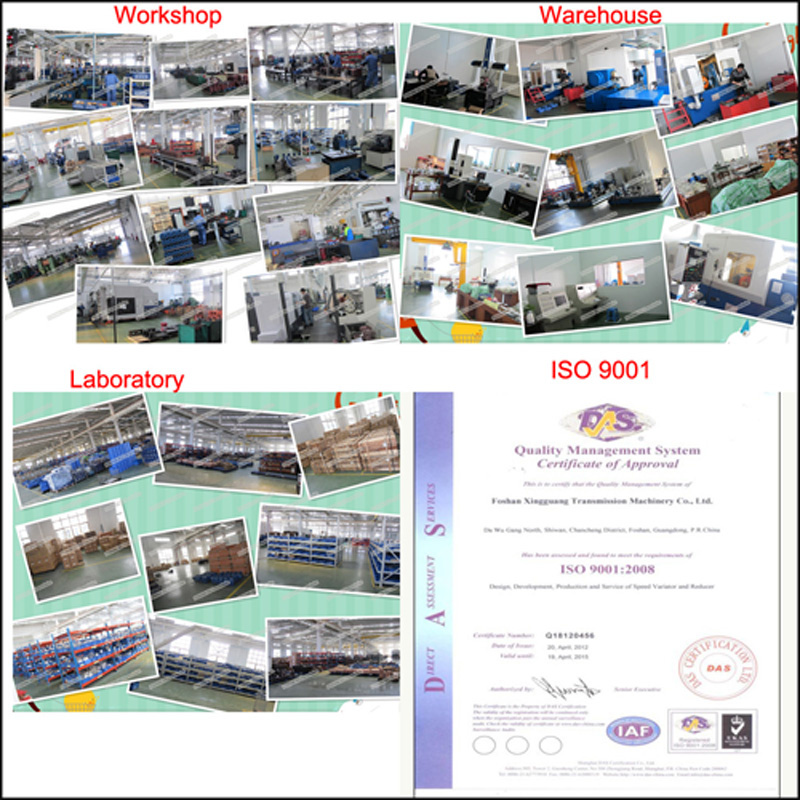

Factory Pictures:
| Prod Model: | S37-Y71M4-0.37-30.68-M1-0 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keywords: | Gear Reducer |
| Color: | Ral5007 |
| Based No.: | S37-S97 |
| Mounting Position: | M1-M6 |
| Manufacturing Method: | Cast Gear |
| Toothed Portion Shape: | Bevel Wheel |
| Type: | Bevel Gear |
Since our establishment, we have been striving to develop new products to meet the market demands. Our main products include JWB-X series of Planetary cone-disk variators, RV series of worm gear reducers, B/JXJ series of cycloid pinwheel gear drives, CJ series of gear reducers, S series of helical-worm gear reducers, K series of helical bevel gear reducers, F series of parallel shaft helical gear reducers and R series of helical gear reducers. These products are widely used in ceramics, glass production, food processing, beverage packing and production, environmental protection, metallurgy, wood machinery and textile industries.
We have more than 200 sets of equipment for processing and detection, including several advanced equipment imported from Japan, Germany and South Korea. Thus, we have an annual production capacity of 200, 000 sets.
Our products are widely distributed in Europe, America, Taiwan, Southeast Asia, the Middle East and other areas. To begin sourcing, contact us today.
