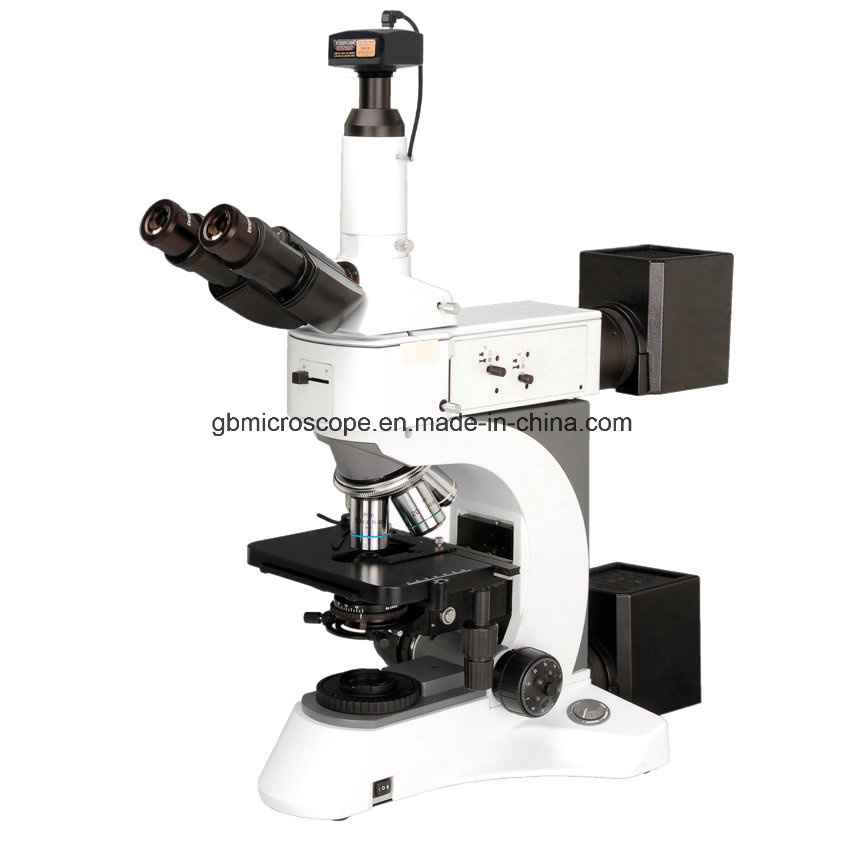

External Digital Upright Metallurgical Microscope MM800TRF+9.0MP USB Camera:
Description:
The External Digital camera microscope MM800TRF with 9.0MP is made up of the biological microscope MM800TRF and professional high resolution 9.0MP digital camera with USB2.0 connection, The included 9 mega pixel camera comes with basic measuring software that allows image capture and this kind of external digital microscope is more flexible compared to the build-in or integrating digital camera microscope. The external digital microscope lends greater flexibility - you can use different cameras on the same microscope and vice versa. And the digital camera could be added on other regular microscope too. And it is more convenient.
.Metallurgical Microscope MM800 series is Developed and Aimed at the Semicondutor Industry, Wafer Manufacture, Electronic Information Industry, Metallurgical Industry, Used as an Advanced Metallurgical Microscope, the User can Experience its Super Performance when observing. It can be Widely Used to Identify and Analyze Semiconductor, FPD, Circuit Encapsulation, Circuit Substrate, Material, Casting, Metal, Ceramic Parts, Precision Moulds. This instrument Adopts Both Reflected and Transmitted Illumination, The Design Meets With The Ergonomics Needs And Makes you Feel Comfortable and Relaxed In Doing Your Job.and it is also widely used in the field of laboratory material science and science research.
Features:
1. Laboratory metallurgical microscope, including bright field
2. Dark field and polarization observation system.
3. Powerful transmitted and reflected system with Kohler illumination.
4. Ideal instrument for industry inspection and science research
5. A digital camera can be added to the trinocular head to take photos and videos
| Standard Specification | 800RF | 800TRF |
| Optical System | Infinite Corrected Optical System | √ | √ |
| Viewing Head | Compensation Trinocular head inclined at 30°, Interpupillary Distance 48-75mm, | √ | √ |
| Compensation Binocular head inclined at 30°, Interpupillary Distance 48-75mm | O | O |
| Eyepiece | Extra Wide Field EWF10X/22 eyepiece | √ | √ |
| Nosepiece | Backward Quintuple Nosepiece | O | O |
| Objectives | Infinite Plan Achromatic Objective 5X/0.12/ /-(Bright Field)WD15.5mm | √ | √ |
| Infinite Plan Achromatic Objective 10X/0.25/ /-(BF/DF ) WD10mm | √ | √ |
| Infinite Plan Achromatic Objective 20X/0.4/ /0(BF/DF) WD4.3mm | √ | √ |
| Infinite Plan Achromatic Objective 50X/0.75/ /0(Bright Field) WD0.32mm | √ | √ |
| Infinite Plan Achromatic Objective 100X/0.9/ /0(Bright Field) WD2mm | √ | √ |
| Infinite Plan Achromatic Objective 40X/0.65/ /0.17 WD0.35mm |
| √ |
| Infinite Plan Achromatic Objective 100X/0.9/ /0.17 WD0.13mm |
| √ |
| Infinite Plan Achromatic Objective 40X/0.6/ /0(BF/DF) WD2.9mm | O | O |
| Infinite Plan Achromatic Objective 50X/0.75/ /0() (BF/DF) WD0.32mm | O | O |
| Infinite Plan Achromatic Objective 50X/0.75/ /0() (BF/DF) WD2MM | O | O |
| Maximum Sample Hight | 30mm | | √ |
| 50mm | √ |
|
| Stage | Nonporous Double Layers Mechanical Stage:186X138, Moving range:74X50mm | √ |
|
| Double Layer Mechanical Stage 186X138, Moving Range:74X50mm |
| √ |
| Specimen Preparation Plate |
| O |
| Glass specimen preparation plate |
| O |
| Focusing System | Coaxial Coarse&Fine Adjustment, Fine Division 0.001mm, Moving range:24mm | √ | √ |
| Condenser | Swing type condenser NA0.9/0.25, Center Adjustable |
| √ |
| Collector | High Brightness Kohler Illumination with Iris Diaphragm, Aspherical Collector |
| √ |
| Incident Light | AC110V/220V, 24V/100W Halogen Lamp, Brightness adjustable | √ | √ |
| Kohler Illumination and aspherical Condenser | √ | √ |
| Polarizer and analyzer kit | √ | √ |
| Transmitted light | External Illumination, AC220V/110V, 6V/30W Halogen Lamp,
Brightness Adjustable. |
| √ |
| Filters | Green, Blue, Yellow, Ground filters |
| √ |
| Optional parts | Specimen Presser | O | O |
| Video Adapter with C mount 1X | O | O |
| High resolution Digital Camera Series:3.0MP, 9.0MP with software | O | O |
Note: "√" Standard Specification, "O" Optional Parts
Camera System Technical Specification:
High Resolution CMOS Digital Camera 9.0MP
| Max Resolution | 3488X2616 (Approx 9000000 pixels) |
| Image Sensor | 1/2.4 COMS |
| Pixel Size | 1.67μmX1.67μm |
| Sensitivity | 0.33V/LUX-SEC(550nm) |
| Dynamic Range | 65.2 dB |
| SN Ratio | 34dB |
| Video Format &Frame Rate | 1.9fps @3488X2616,8fps@1733X1308,27fps@872X654 |
| Exposure | 0.38-2000ms, ROI Manual o&Auto |
| Binning | 1X1,2X2,4X4 |
| White balance | ROI balance/Manual Temp Tint Adjustment |
| Capture/Control API | Native C/C++, Direct show, Twain and labview |
| Record System | Still picture and movie |
| Operation Temperature | -10ºC~50ºC |
| Storage Temperature | -20ºC~60ºC |
| Operation Humidity | 30~80%RH |
| Power Supply | DC5V by USB Port |
| Operation System | Microsoft windows XP/VISTA/7/8(32&64 bits)
OS X(Mac OS X), Linux |
| PC requirement | CPU: Equal to Intel core2 2.8GHz or Higher |
| Memory 2GB or More |
| USB port: USB 2.0 High speed port |
| Display:17 or Larger |
| CD-ROM |
