This machine is suitable for producing PET plastic containers and bottles from 50-2000 ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.

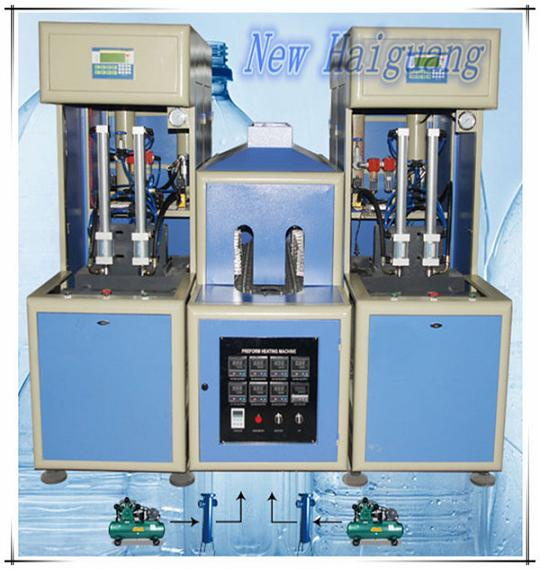

Machine included:
1pcPre-form heater, 2pcs blowing machines, 2pcshigh pressure air compressor, 1pc air filter, 1 set of air pipe and its connectors, molds and spare parts with tools
| Name | Item | Unit | Details |
| Blowing machine | Dimension | mm | 1600*600*1610mm |
| Bottle volume (max) | ml | 2000 |
| Bottle volume (min) | ml | 50 |
| Bottle Neck Diameter (max) | mm | 40 |
| Bottle Neck Diameter (min) | mm | 18 |
| Body Diameter (max) | mm | 125 |
| Body Height( max) | mm | 420 |
| Number of Cavities | mold | 2 |
| Production output | pcs/h | 1600-1800BPH |
| Clamping force | T | 5.7(56KN) |
| Mold thickness | mm | 200(max) |
| Mold width | mm | 360x390 |
| Space between Tie-bars | mm | 120-220 |
| Diameter of Tie-bars | mm | 63 |
| Scope of Tie-bars | mm | 405 |
| Mold stroke | mm | 160 |
| Stretching stroke (max) | mm | 420 |
| Working pressure | Mpa | 0.8-1.0Mpa |
| Blowing pressure | Mpa | 2.0-3.0Mpa |
| Voltage/Power | V/KW | 220V/1KW |
| Weight | Kg | 500 |
Pre-heater
| Dimension | mm | 1870*630*1450mm |
| Weight | kg | 260 |
| Voltage/Power | V/KW | 380V/14KW |
