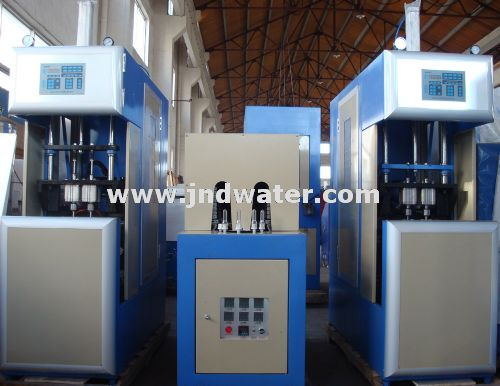

Semi-Auto Reheat Stretch Blow Moulding Machine (Jnd-880)
| Price: |
Negotiable |
| Min Order: |
1set |
JND series of semi-automatic stretch blow molding machine designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.
General Information
| JND-880
|
|
Clamping Force
| 20T
|
Clamping Stroke
| 230mm
|
Max. Stretching Stroke
| 380mm
|
Number of Cavities
| 2 Cavity
|
Theoretical Output
| 0.1-2.5L:880BPH 3-6L :380BPH
|
|
Max. Mould Thickness
| 300mm
|
Space Between Tie Bars
| 280*500mm
|
Electrical System
|
Voltage Standard
| AC 380V/50HZ
|
Number of Heating Zone
| 2 Sections
|
Total Power(Full Loaded)
| 6kw
|
Container
|
Max. Container Volume
| 0.1-2.5L(2cav);3-6L(1 cav)
|
Neck Diameter Range
| 15-60mm
|
Max. Container Diameter
| 35-220mm
|
Max. Container Height
| 450mm
|
Auxiliary System
|
Low Air compressor
| 8-10Bar
|
High Air compressor
| 30Bar
|
Air Dryer
| 2.0/30
|
Dimension & Weight (L×W×H)
|
Blow molding machine
| 1480*600*2130mm
|
Preform Autoloader
| 1370*610*1340mm
|
Net Weight
| 0.82Ton
|
| Prod Model: |
Jnd-880 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Making Method Of Parison: |
Stretch Blow |
ShenZhen J&D Drinking Water Equipment Co., Ltd., is one leading enterprise in China in bottling equipment industries, who supply various of drink machineries for the customers all over the world.
J&D is a hi-tech designing & manufacture enterprise specialized in beverage producing & packing complete lines and various water treatment equipment. It is one of the earliest companies engaging in manufacturing liquid filling and packing equipments in China. Now J&D have become excellent manufacturer to supply series of hi-tech producing lines with the highest technologies for drink industries.
J&D company own total 50000 square meter factory area, 20000 square meter building area and 1500 staff. J&D also holds total fixed assets more than 80 millions US dollars and annual Sales of over 500 million US dollars to all over the world.
J&D is one of the first enterprises who earn ISO9001 Certificate in the beverage industry field in China, most of drink equipments produced by J&D are CE, TUV, GS, ETL, UL, SASO, RoHS or CSA approved.
On the basis of over 30 years of experiences in manufacturing beverage equipments, J&D also continuously imported many relevant advanced technologies from Germany, USA, Italy, UK to improve the equipment quality and managing system.
Now J&D company can supply following types of complete set of drink equipment:
* water dispenser, water filter system and all of accessory equipments for drink plant
*3000-36000BPH mineral water & pure water processing and filling line;
*3000-36000BPH fruit juice & iced tea hot processing and filling line;
*100-2000BPH 5 or 3 gallons series bottling lines;
*2000-36000BPH carbonated drink processing and cold filling line;
*1000-8000BPH vinegar & wine filling and packing line;
Various of water treatment equipment.
With the excellent technologies and better quality, all the products from J&D have good reputation in clients from all over the world. These drink equipments have not only been well sold in domestic market, but also exported to USA, UK, Ireland, Canada, Australia, Mexico, Russia, Africa and the Middle East area and so on.
The highest target aimed at by J&D is to satisfy demands of the clients with the newest technologies and reliable products. Besides providing turn-key project for the clients with perfect products, installation, service and train, also J&D would like to provide various project consulting services for clients about layout of producing line, budget and Industrial information. J&D would like to share the latest technologies with clients and offer trust service for them.
"Sincerely reception, Reputation is first", Quality is firstare managing principle observed by J&D, We would like to cooperate with friends from all over the world to develop together and establish long term stable business relations. All friends at home or abroad are warmly welcomed to develop a new business with us. We would like to offer my best price and perfect products and skillful service to all of current or potential clients all over the world.
