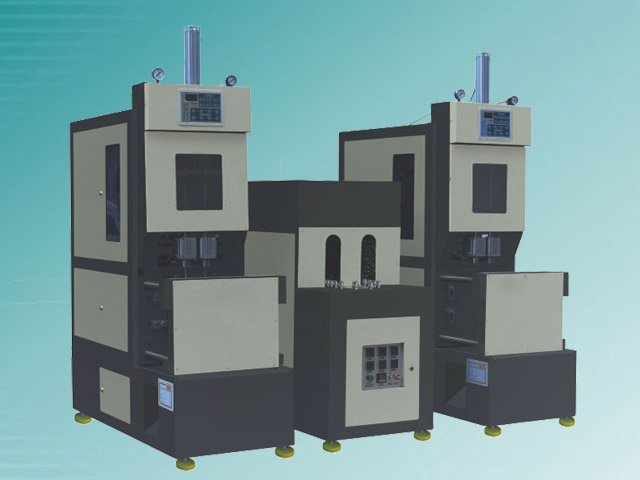

ProductName: Semi-automatic Bottle Blow Molding Machine
stretch blow molding machine
extrusion blow molding machine
extrusion moulding machine
Model: BM-1500
Descriptions:
l WaterTech's semi-automatic stretch blow molding machine designed by CE standard.
l It is with microcomputer controlling system.
l It controls various technical parameter needed more accurately and more steadily.
l Two persons without special training operates it more easily and more safely.
l It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles, especially oil bottles with handles.
Technical Specifications
Item Unit Technical data
Machines 1 pre-heater + 2 blowing units
Container volume L 2
Output PCS/Hr 1500 (500ml)
Max. bottle height mm 320
Max. bottle diameter mm 120
Max. neck diameter range mm 75
No. of cavity Cavity 2
Working Pressure Mpa ≤ 1.2
Blowing Air Pressure Mpa 3
Power of main machine kw 16
Voltage of main machine V 220/50/60Hz
Voltage of Heater V 380/50/60Hz
Main machine(LxWxH) mm 1830x580x1800
Heater (LxWxH) mm 1450x700x1350
Wight of main machine
kg 800x2
Wight of heater kg 380
WaterTech---All About Drinking Water Equipments.
Our ISO 9001-certified factory covers an area of 5, 800m2, equipped with 5 production lines. We provide one-stop technical service, including design, installation, debugging and maintenance. We can provide the technical training for clients. In addition, we adopt the Italy and Germanic technique. When the equipment get something wrong, our technicians will provide solutions within several hours. Besides, if necessary, we can dispatch the technician to solve the problems at site.
We have 5 QC staff with over 10 years' experience. All of our products have passed CE approvals. The auxiliary parts are from international and domestic famous brand products, such as SIEMENS, FESTO, GRUNDFOS, OMRON and so forth. Before shipment delivery, we run all complete sets for 30-70 hours continuously for further inspection. Therefore, our equipment's lifetime reaches about 10 years under normal operation and maintenance.
Our 7 R&D staff have over 10 years' experience, preparing to provide specific service for you. Our service covers logo printing, packing design and instruction printing. Lead time for confirmed orders is within 45 days.
Welcome to contact us today to get further information about drinking water equipment.
