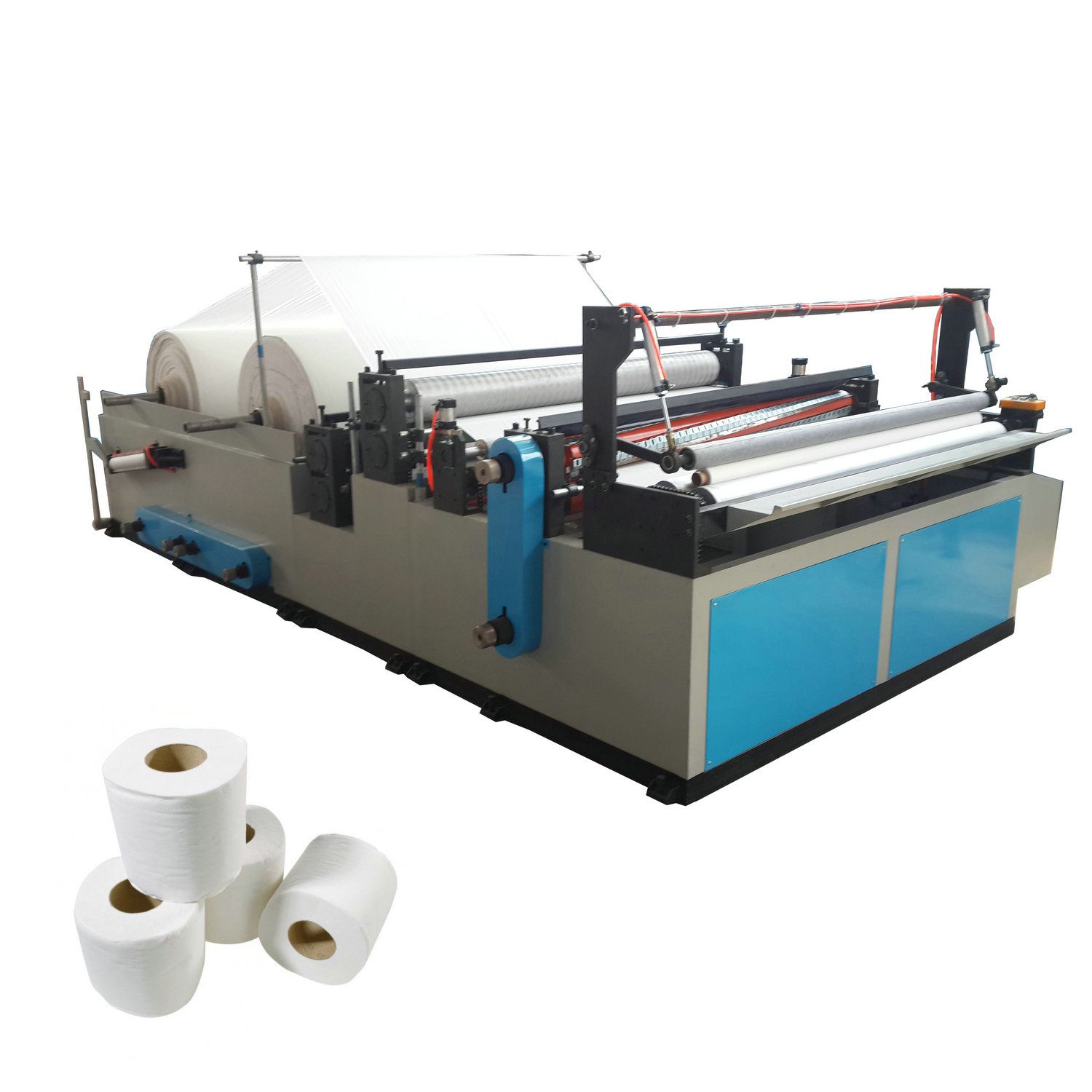

Semi Automatic Rewinding and Perforating Toilet Paper Machine XY-TQ-92/75
Description of the equipment:
XY-TQ-1575 This equipment is to perforate and rewind the jumbo roll paper (raw paper
) into various sizes of toilet roll paper according to the requested. The finished small toilet paper is neat, in good order and with equality tension.
Video link: https://www.youtube.com/watch?v=L81UXHbrOCU
Features:
1. Roll with tension to produce high and low level raw paper.
2. Adopting screw turning knife to cut, knife-blade is strong enough to operate fast without noise and shaking.
3. Electric controlled counter to ensure the weight of product.
4. Use special saw belt to keep section in good order. The saw belt is simple and easy to repair and grind.
| Machine Model | 1092 | 1575 | 2000 | 2200 | 2400 | 2600 | 2800 |
| Width of jumbo roll (mm) | 1200 | 1750 | 1950 | 2150 | 2350 | 2550 | 2750 |
| Finished Products Diameter | Φ80~110mm (Tightness can be adjustable) |
| Finished Products Inner Diameter | Φ40~60 mm |
| Jumbo roll diameter (mm) | Φ1200 (Other sizes please point out) |
| Jumbo Roll Inner Diameter | 76.2 mm (other sizes please point out) |
| Perforation distance (mm) | 4 blade,90~160mm; 2 blade,180~320mm; |
| Production speed | 100 m/minute |
| Air pneumatic system | 3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) |
| Power | 4kw-10kw (380V 50Hz) |
| Overall size (L×W×H) | 6200X2750X1800 mm |
| Weight of equipment | About 3T |
| Chosen items (Should be ordered separately) |
| Embossment | Single embossment, Double embossment, Edge embossment |
| Embossment down roller | Paper roller, rubber roller |
| Jumbo roll stander | 1-3 plies |
| Rewinding unit | Non-core unit |
| Printing unit | Single color heliotype printing unit |
| Other special request for machine is welcome |
Fujian Xinyun Machinery Development Co., Ltd., established in 1998. We have passed ISO9000 Certification for good quality.
We are a factory dealing specially with the export of daily using paper series equipments.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
All of our products are certified to meet international quality standards and We are producing both standard machines and can provide customize service upon customer's request.
Our machines are export to all over the world, and have got the customers' high appraise.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.
Any questions from you are welcome and will be replied in 24 hours.
