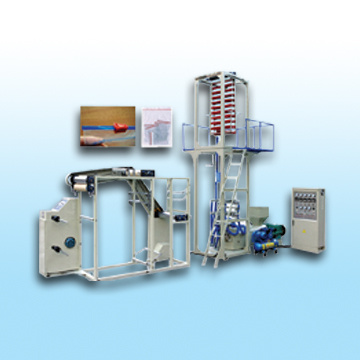

Series Rotary Die Head Film Blowing Machine (SJ-50, SJ-60)

Series Rotary Die Head Film Blowing Machine (SJ-50, SJ-60)
Price: Negotiable
Trade Terms: by land and or by sea
Min Order: 1set
This machine is suitable for blowing and making various plastic film such as LDPE, HDPE and LLDPE, which have been widely used for packaging liquid, printing and laminating film, bag for garments and foodstuff.
Main data(50 type, 60 type)
Diamater of Screw Shaft: 52mm, 60mm
Ration of length/dia: 28/1
Rotational speed of screw shaft: 10-100r/min
Max output: 50kg/h, 65kg/h
Machine power: 15kw, 18.5kw
Size of mould head: 100, 150mm
Thickness of single film: 0.006-0.1mm
Max folding diameter of Film: 800mm, 1000mm
Total power: 25.7kw, 29kw
Machine weight: 2300kg 3000kg
Prod Model: SJ-50, SJ-60
We have the pleasure of introducing ourselves to you as a professional manufacturer and exporter specializing in various printing and packaging machinery & materials, and machine parts in China for more than 16 years,

We have our own production bases to produce printing and packaging machinery, and materials etc. We supply industrial machine from single machine to turn key projects, from existing products to producing machine according to buyer's drawing and requirements. Particularly it is worth mentioning that we have a professional team who has been in printing and packaging industry for many years, this makes us in such an advantage that we can easily supply extensive machines for printing and packaging industry at very attractive prices. As it maybe not easy to contact and communicate with different factories, furthermore, you are difficult to know the reputation and credit of such factories, most of them are not authorized for export directly. Even for those who have approved to a direct export, we can do better in prices and services. All our products are under quality warranty and our professional staff will provide best service for you. Through our unremitting efforts in developing overseas market, we have won good reputation among customers worldwide. Therefore lots of manufacturers appointed us to be their sole export representative, we can get best price and prompt service to our customers.

We feel confident you will agree after first cooperation, that our products are both good in quality and competitive in price.

Our printing and packaging machines including:

1. Series semi or fully automatic die cutting and creasing machines

2. Automatic hard cover making machines or automatic case makers, rigid gift box machines

3. Series slitter rewinders, paper sheet cutting machine

4. Complete lines for making plastic bag: Rotogravure printing machine, dry laminating machine, various bag making machine, film blowing machine, flexographic press.

5. Multi-function coating machine for making various adhesive tapes and special materials.

6. Label making machinery such as flexo printing machine, label die cutting machine etc.

7. Automatic filling, capping, labelling machines.

8. Screen printing machines, hydraulic laminating machine, UV coating machine

9. Strapping machine, vacuum packaging machine, Auto-carton sealer, heat shrink packing machine, desktop vacuum packaging machine, pad printing machine, hand film sealer, pallet stretch film shrink wrapper.

10. Paper core or tube making machines

11. Paper cup, paper bowl forming machines, cheese box forming machine.

12. Machine parts such as rubber roller, rotogravure printing cylinder, tension controller, colour register system, still picturing video system, air shaft, EPC, LPC, magnetic powder clutch and brake, meter counter, electric shock device, viscosity controller etc.

13. Plastic thermoforing machine

14. Paper cutter, automatic folder gluer, embossing machine, automatic flute laminating machine etc. And other postpress equipment.

15. Printing&packaging materials.

16. Office Equipments: Paper shredder, paper cutter, laminator, binding machine, puncher, stapler and stationery.

17. Corrugated carton making machines.

18. Window & door assembling machines(AL, PVC).

Please don't have any hesitation to contact us for more information.

We are looking forward to cooperating with friends from all around the world!
