| Price: | US $ 21800-23800/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Servo motor system:
PLC: Taiwan TECHMATION controller Driver: Taiwan Delta
Oil pump: Japan Sumitomo Servo motor: Italy PHASE.
| Clamping Force: | 138tons | Application: | Household, Industrial, Auto |
| Control Method: | Automatic | Feature: | Energy Saving |
| Material: | PE, PVC | Mold Cavities: | 10 Cavities, 12 Cavities |
| Working Principle: | High Speed, Hydraulic, Screw |

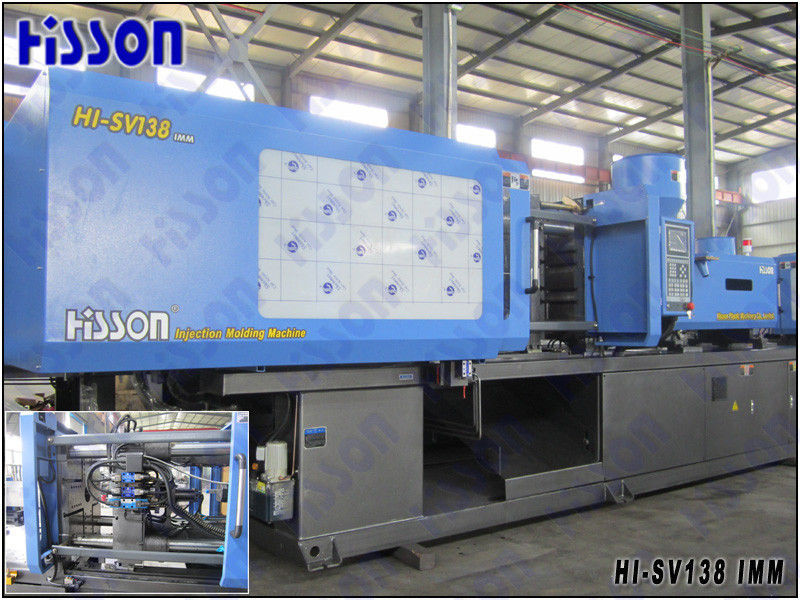

Hydraulic Servo Motor Auto Injection Moulding Machines With Low Noise
Quick Detail:
HI-SV138 Servo motor injection molding machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 138tons, there are three available screws, the corresponding real shot weight 145g, 180g, 215g. This machine is mainly used to produce small industrial parts, household appliances and other plastic products.
The machine is with servo motor to save power, compare with standard machine, according to specific products, the servo motor machine can save power 30% to 70%.
Machine main components adopt world famous brand, e.g.:
? Low voltage contactor: SCHNEIDER(FRANCE),
? Low voltage air switch: SCHNEIDER(FRANCE),
? Proportional Valve: Dofluid HNC(TAIWAN)
? Oil pump: VICKERS(USA)
? Directional Valve: VICKERS(USA)
? Induction travel switch: OMORON (JAPAN)
? Inductor potentiometer: FORT(USA)
Applications:
HI-SV138 Servo motor injection molding machine is for small industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-210g, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities,16 Cavities
Description:
HI-SV138 Servo motor injection molding machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Specifications:
HI-SV138 Technical Parameters
HI-SV138 | Optional Parameters | ||||
TECHNICAL PARAMETER TABLE | Unit | A | B | C | |
INJECTION | SCREW DIAMETER | mm | 38 | 42 | 45 |
SCREW L/D RATIO | L/D | 23.1 | 20.9 | 19.5 | |
SHOT VOLUME(THEORETICAL) | cm3 | 198 | 242 | 278 | |
INJECTION WEIGHT(PS) | g | 180 | 220 | 253 | |
INJECTION RATE | g/s | 97 | 118 | 135 | |
PLASTICIZING CAPACITY | g/d | 17 | 21 | 23 | |
INJECTION PRESSURE | Mpa | 217 | 178 | 155 | |
SCREW SPEED | rpm | 0-200 | |||
CLAMPING | CLAMP TONNAGE | kN | 1380 | ||

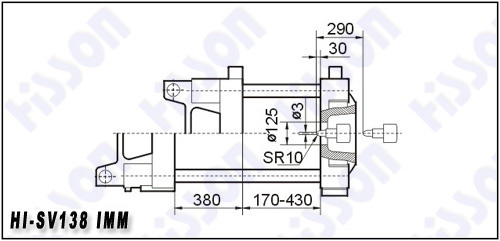

TOGGLE STROKE | mm | 380 | |||

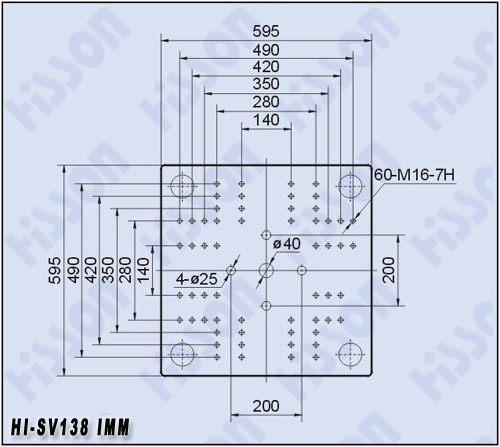

SPACE BETWEEN TIE BARS | mm | 410×410 | |||
MAX.MOULD HEIGHT | mm | 430 | |||
MIN.MOULD HEIGHT | mm | 170 | |||
EJECTOR STROKE | mm | 115 | |||
EJECTOR TONNAGE | kN | 40 | |||
EJECTOR NUMBER | Piece | 5 | |||
OTHERS | Max.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | KW | 13 | |||
HEATING POWER | KW | 7.2 | |||
MACHINE DIMENSION(L×W×H) | m | 4.7×1.3×1.8 | |||
MACHINE WEIGHT | T | 4.6 | |||
HOPPER CAPACITY | kg | 25 | |||
OIL TANK CAPACITY | L | 230 | |||
| Prod Model: | HI-SV138 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamping Force: | 1380kn |
| Screw Dia.: | 38/42/45mm |
| Shot Volume: | 198/242/278cm3 |
| Tie Bar Distance: | 410*410 |
| Type: | Injection Blow Molding |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | CE |
