Sh-250 Biscuit Machine

Full Automatic Biscuit Line
SH-250


Function:
It is used to produce all kinds of hard biscuit, soft biscuit and soda biscuit.
General Introduction:
SH Series Biscuit Production line is the primary choice for the production of kinds of hard and soft biscuit.The biscuit plant equipments can be combined and displayed according to customer's local space or biscuit technical requirement.By changing the moulds and recipes, this plant is able to produce various types of high quality biscuit, such as cream biscuit, sandwiching biscuit, soda cracker biscuit, animal biscuit, vegetable biscuit etc., there are diversified heating source for your operation.(Electric, gas, fuel oil)

Main Parameters

Model	SH-250	SH400	SH-600	SH-800	SH-1000	SH-1200
Capacity	100	250	500	750	1000	1250
Total Length(mm)	29600	64500	85500	92500	125000	125000
Baking Temp.(ºC)	190-240	190-240	190-240	190-240	190-240	190-240
Electric Power Needed (kw)	65	190	300	380	700	830
Gross Weight (kg)	6000	12000	20000	28000	40000	45000

Company Information
Saiheng Food Processing Equipment Co.,Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine.The company's main products:Biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment.

Working Process:

Full Automatic line process from raw material mixing to final Packing

Flour Mixing---Moulding/Shaping--Baking---Oil Spraying---Cooling--Packing

Capacity optional:(Price of this line depends on the capacity)

100/200/300/500/800/1000/1200 kg/hr

Final Products:

Cream biscuit, layer biscuit, soda cracker, calcium biscuit, multi-vitamin biscuit, vegetable biscuit, etc.

Dough mixer:
used for dough mixing.


Dough dump station:
transport large batches of dough from portable dough troughs into a continuous dough feeding or sheeting system.


Dough feeding system :
Dough is dumped into the Feeder and the conveyor moves the dough evenly  and send the dough to the guillotine, the pneumatic-powered guillotine cut the  dough into the right-sized pieces, the outlet conveyor to moves them to the sheeting equipment.


Three-roll sheeter:
generates a consistent dough sheet ready for further thickness reduction or lamination. Two grooved rolls draw the dough into the pressurized cavity between the three rolls, and the dough is compacted and discharged as a continuous sheet. The thickness of the dough sheet is changed by adjusting the gap between rolls.



Laminator(with flour sprayer):
Laminating produces a light, crisp texture, which cannot be achieved in any other way.


Gauge station (Two-roll sheeter):
is a fundamental machine in most cracker, hard biscuit production lines. Parallel, hardened, solid-steel rolls  reduce the dough sheet thickness.


Rotary cutter:
Rotary cuttier is forming machine for cracker and hrad biscuit.
When dough sheet go through rotary cutter, it will be cut and shaped by moulds.


Rotary moulder: used to form the soft biscuit.
After crushed by roller, the dough go through the moulder to form.
Grooved feed roller ensures uniform pressure across the die roller.
The distance between feed roller and die roller is adjustable.


Separate machine:
Separating the scrap from the biscuit sheet after rotary cutting.

Recycle device:
transporting the scrap by conveyor to hopper of the three-roll sheeter for reuse.

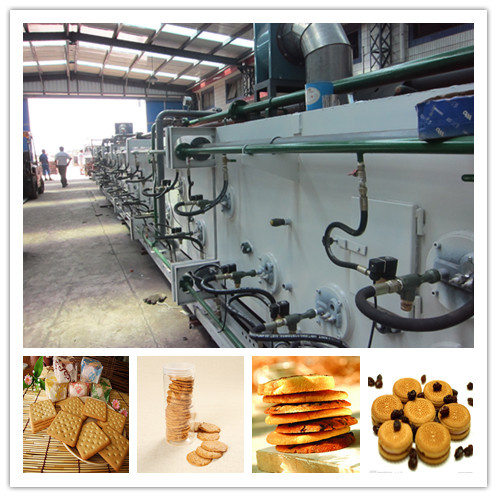

Baking Oven:
Baking oven is used for baking biscuits, cookies and ruffles and potato chips and crisp and  many more products.
Heated by LPG and natural gas or electricity.
Pre-manufactured and insulated in 3-m-modules for fast and easy installation.
Burner flames heat up the burner chamber and the tubes in the heat exchanger.
Heated air transferred via tubes to the top and the bottom of the baking chamber.
Combustion gases removed by flue system without contacting the products.
Heat recovery unit for energy savings and reduction of CO2 emissions.
Burners controlled by temperature sensor to ensure constant and correct baking temperature.
Band driving and tensioning stations ensure smooth running of the bands.
PLC controlled and operation via touch screen.
