Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine

Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine
Price: US $ 27500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine:
1). blow molding machine experience of engineer for more than 12 years
2). Machine produce the max for 30L jerrycan
3). The capacity is about 60pcs/h.
4). The famous imported components for machine
5). Taiwan Yuken hydraulic valve for stable working
6). The deflashing system can be equiped according to customer's request.

2. Main characteristics of Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine:
1). Accumulator head, single layer, the capacity is up to 30L jerrycan, drum.
2). It process the material as HDPE, PP, ABS and etc.
3). Power supply: 380VAC, 50Hz (depending on client's county ).
4). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems:

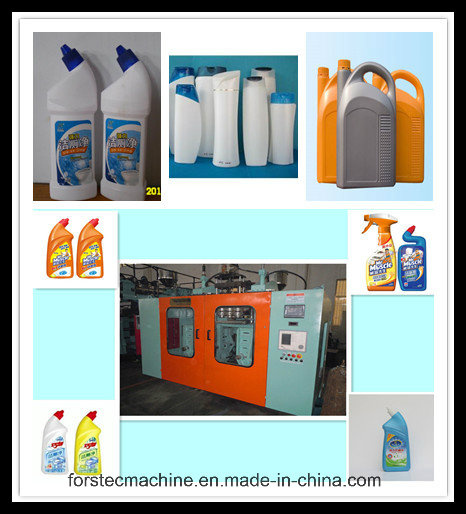

This Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine is mainly used to produce 5L plastic bottles as shampoo bottles, cleaning bottles. Some basic parameters are as follows:
1. Screw diameter: 70mm
2. L/D ratio: 24/1
3. Max capacity: 30L
Dry cycle: 180pc/h
Clamping force: 230KN
Platen open stroke: 400-900mm
Plasten size: 900*780mm
Max platen size: 900*780mm
Oil Pump Power: 11kw
Extrusion motor: 30KW
Plasticizing capacity: 100kg/h
Heating zone: 4 zones
Extrusion heating power: 20.2kw
Power of Die heating: 15.2kw
Max die pin diameter: 250mm
Accumulator head capacity: 5L

The general information for this Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine:
Extrusion system: Screw: Specially designed based on material's trait, High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2. Barrel:
Die head system: Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.

3. Advantages of this Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine:
1). Adopt energy-saving system which can increase the 20% efficiency.
2). The capacity is about 95pcs/h which is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.

5. After-sale service:
1). Instruction for Installation and Debugging
Before delivery,FORSTEC takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
FORSTEC also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of FORSTEC, provides the engineer with round-trip tickets, accommodation, vehicle and $55 per day salary.

2). User Training
Before delivery,FORSTEC will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3). Warranty Period
The warranty period for FORSTEC machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

6. Main parameters for this Shampoo Bottle Cleaning Bottles Extrusion Blow Moulding Machine:
extruder
1Screw diameter70mm

2L/D ratio24:1

3Screw speed50-90r.p.m.

4Drive motorAC 30Kw   3 Phase asynchronism motor


5Inverter driveAmerica Amerson


6Heating zone with cooling fan4 zones


7Output/Throughout100(HDPE  particle)


8Heating capacity20.2KW

9Vertical adjustment of head400mm

10Forward/Backward adjustment of head400mm

11Groove feed barrel cylinderNo


12Gear boxHard gear decelerator


13Ladder and safety railsfixed



DIE HEAD
1Accumulator capacity5L(3.75kgHDPE)

2DesignFirst in, first out


3Heating zone4 zones


4Heating capacity15.2kw

5Max die$pin diameter250mm

6Die head axis with pre-blow80mm

7Accumulator push-out stroke measurementTransducer  Italy Gefran


8Injection pressure12Mpa

9Extruder stopHAVE



CLAMPING UNIT
1Tie barTwo tie bar


2Platen size780(W)X900(H)

3Length of mold410-510mm

4Clamping force230KN

5Close/Open stroke400-900mm

6size of mold600×1000mm

7Clamping stroke measurementProximal sensor TAIWAN RIKO


8Hydraulic valveYUKEN


9Number of hydraulic cylinder1

10High pressure14mpa

11Support parts for platen movementGuide



HYDRAULIC SYSTEM
1Drive motorAC 11Kw 3 Phase asynchronism motor


2Hydraulic  valveYUKEN


3Hydraulic pumpTaiwan


4Connector\TuberJapan PIONEER


5SealJapan VALQUA


6Oil tank capacity400L

7Operating pressure14mpa

8Cooling water for oilfixed


9Control of oil level & temperatureChecking oil temperature and abnormal alert
be observed dipstick


Prod Model: FSC70D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Application: Plastic Cleaning Bottle,Shampoo Bottle
Material Used: HDPE
Screw Diameter: 70mm
Automatic Degree: Fully Automatic Extrusion
Model Number: Fsc70d
Place Of Origin: Jiangsu,China
Diemension: 4.8*2.3*3.5
Station Number: Extrusion Head
Max Capacity: 5L
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.

We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.

The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
