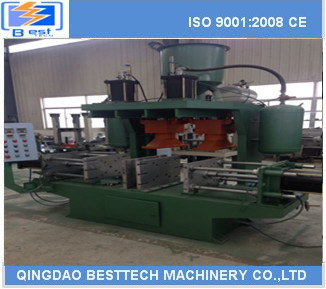

Besttech Z94 Series Core Shooter
Shoot core machine is a manufacturer of resin sand core business equipment, is through the special sand bucket by compressed gas into the mold cavity injection core sand, sand core is heated rapidly curing.
Feature:
Meet the small size and sophisticated sand core production needs.
Use PLC programming control
Adjustable technics parameters
Mold temperature automatic control
Technical Parameter
Model |
Z946K |
Z947K |
Max Dimensions of mold board(mm) |
750X400 |
750X400 |
Cover half thickness(mm) |
150 |
150 |
Movable mold mini thickness(mm) |
250 |
250 |
Compound die process (mm) |
400 |
400 |
Max sand core weight(kg) |
20 |
25 |
Sand hopper capacity(kg) |
200 |
200 |
Heating mode |
Electric heating |
Electric heating |
Electric heating power(kw) |
35 |
40 |
System pressure(Mpa) |
0.55-0.8 |
0.55-0.8 |
Operation mode |
Manual/auto |
Manual /auto |
