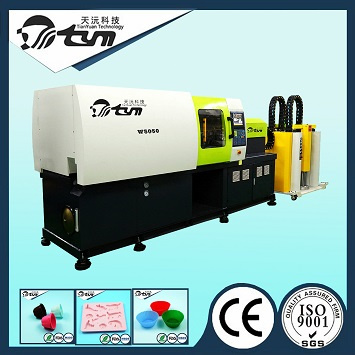

TYM-W4545 horizontal liquid silicone rubber injection molding machine
Horizontal Liquid Silicone Rubber (LSR) injection molding machine
Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.
The main feature of the horizontal LSR molding machine:
A. Newly-optimized integrated all-in-one design
B. Meet multiple requirements on the automatic manufacturing technique for LSR products.
C. Shorter the mould closing and opening time, improve the production efficiency.
D. Remote control function
E. Multi-section mould closing and opening and injection, speed adjusting stepless.
The Horizontal LSR machine for the applicable scope:
1) Liquid silicone baby products, such as the baby nipple, baby pacifier, baby toothbrush, silicone feeding bottle, baby soother etc.
2) Liquid silicone medical part, as like the capsule, laryngeal mask capsule, oxygen mask, protective mast, catheter, balloon, medical belt etc.
3) Silicone high-voltage cable accessories,
4) Electronics and industrial product, such as the watchband, mobile phone case, valve, O-ring, sealing part, auto parts more.
5) Sex products, such as the vibrating spear, sex toy coat, adult supplies etc.
Mechanical Characteristics for TYM-W4545
TYM-W4545 Horizontal LSR injection molding machine
Injection Unit
Shot Volume 165g
Injection Rate 30 g/s
Injection Pressure 19.6 T
Clamping Unit
Clamping Force 120T
Opening Stroke 215-615 mm
Tie-Bars Space 400*400 mm
Ejection Force 7.8 T
Ejection Stroke 150 mm
Others
Pump Pressure 21 Mpa
Motor Power 11 KW
Heater Power 9 KW
Mould Orientation Ring Diameter Φ 100 mm
Machine Weight 3.5 T
Machine Dimension 3.8*0.90*1.70 m
|
TYM-W4545 Horizontal LSR injection molding machine |
|
Injection Unit |
|
Shot Volume |
300g |
|
Injection Rate |
30 g/s |
|
Injection Pressure |
19.6 T |
|
Clamping Unit |
|
Clamping Force |
160T |
|
Opening Stroke |
215-615 mm |
|
Tie-Bars Space |
550*550 mm |
|
Ejection Force |
7.8 T |
|
Ejection Stroke |
150 mm |
|
Others |
|
Pump Pressure |
21 Mpa |
|
Motor Power |
11 KW |
|
Heater Power |
9 KW |
|
Mould Orientation Ring Diameter |
Φ 100 mm |
|
Machine Weight |
4.8 T |
|
Machine Dimension |
3.8*1.4*1.70 m |
Guangzhou city Panyu District Tianyuan Silicone Rubber Machine Factory is a very famous professional company which is specially for researching and developing both horizontal and vertical Liquid Silicone Rubber (LSR) injection molding machine, we have very excellent technical team, which has deep foundation on both of the practice and the theory. Expect the design of the mechanical structure, we have been trying our best to develop the controller which is more advanced and humanistic, this will improve the performance of the machine greatly, and meet the whole detailed needs on our machine for every industries. Over the years, we have done so many experiences on the LSR process, and got large number of valuable information and remarkable achievements in research, and many items already obtains many national patents.
To guarantee the excellent quality of our TYM LSR injection molding machine, we purchase all of the spare parts from world-famous brand, we have specifically set up a comprehensive quality control system. During the machine manufacturing process, no matter the incoming inspection, process inspection, or final product inspection and testing machines, we have detailed quality system as the standard of the quality inspection. Nowadays our TYM has already got the ISO9001: 2008 international approvals, CE certificate for the LSR machine.
We have more than 10 years' designing and manufacturing experiences on the LSR injection molding machine, all these years we have accumulated so much abundant experiences, we will continue to develop and make progress, we have been trying our best to be your best choice in the liquid silicone product industry with excellent quality, professional technology, and quick and thoughtful service.
