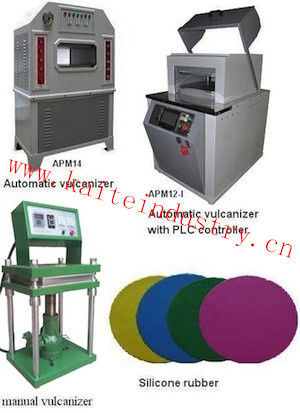

1/. Automatic vulcanizer
Model: APM12, APM14, APM16, APM18, APM20
Automatic vulcanizer for curing silicone or organic rubber moulds for centrifgal casting.
Features:
1. Automatic control
2. Automatic pressure regulation.
2. Automatic temperature control
3. Curing cycle timer.
4. Automatic forced cooling
5. Digital display temperature and time.
6. Maximum pressure protection
7. Environmental and energy saving insulation design to provide a better temperature uniformity and Energy cost saving.
2/. Automatic vulcanier with PLC controller
Model: APM12-I, APM1-I4, APM16-I, APM18-I, APM20-I
Automatic vulcanizer for curing silicone or organic rubber moulds.
Features:
1. PLC Automatic intelligent vulcanizing control.
2. Touch-screen control panel.
3. Automatic pressure regulation.
4. Digital temperature controller.
5. Curing cycle timer.
6. Automatic forced cooling
7. Digital display pressure, temperature and time.
8. Maximum pressure protection
9. Hydraulic group with motor pump and oil pressure release valve.
10. Electro-valve controlled plate opening.
11. Environmental and energy saving insulation design to provide a better temperature uniformity and energy cost saving.
3/. Manual vulcanier
MVP12, MVP14, MVP16
Manual vucanizer press for curing silicone or organic rubber moulds for spin casting.
Features:
1. Automatic temperature control
2. Curing cycle timer.
3. Digital display temperature and time.
4. Heating plates with goods surfaces to assure perfect flatness.
Automatic vulcainer |
APM12 |
APM14 |
APM16 |
APM18 |
APM20 |
Mould diameter, max |
12" |
14" |
16" |
18" |
20" |
Mould thickness, max |
150mm |
Heating |
6KW |
6KW |
9.6KW |
10.8KW |
15KW |
motor |
1.5KW |
Pressure , max |
32T |
32T |
50T |
50T |
50T |
PLC automatic vulcanizer |
APM12-I |
APM14-I |
APM16-I |
APM18-I |
APM20-I |
Mould diameter max |
12" |
14" |
16" |
18" |
20" |
Mould thickness, max |
150mm |
Heating |
6KW |
6KW |
9.6KW |
10.8KW |
12KW |
Motor |
1.5KW |
Pressure,max |
32T |
32T |
50T |
50T |
50T |
Model |
MVP12 |
MVP14 |
MVP16 |
MVP18 |
MV20 |
Mould diameter, max |
12" |
14" |
16" |
18" |
20" |
Mould thickness, max |
150mm |
Heating |
4.0KW |
6.0KW |
9.6KW |
10.8KW |
12KW |
Pressure , max |
32T |
32T |
50T |
50T |
50T |
