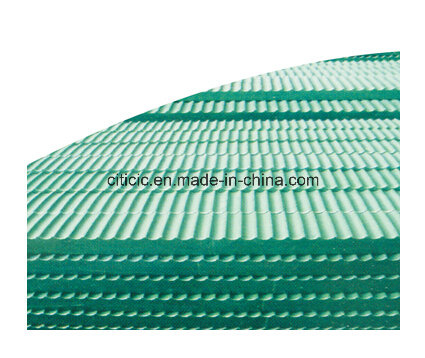

Single Rope Mining Hoist Plastic Plates
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Technical Characteristics:1. Of high mechanical strength, and long usage cycleThe compressive strength of this kind of plastics plates is 7 to 10 times higher than that of the wood liner, thus conditions such as crushing and flatting of the wire rope groove, and its usage cycle is above 5 times longer than that of the wood liner.2. Of wide range of application The plastic plates are of good resistance of desiccation and moisture, avoiding the phenomenon of the sun cracking and rotting of the wood. They are especially suitable for using in severe environment, such as Mining of large water spray and high corrosivity, and underground mining.3. Of light proportion and no water absorptionThe proportion is 0.98, which is lighter than the wood liner after absorption, thus the rotational inertia and the reactive power of the equipment would not be increased.4. Compression moulding, with flat surface of the rope grooveThey are easy to install. With the neatly rank of the wire rope, phenomenon such as locking and skipping of the wire rope could be avoid from happening, and the usage life of the wire rope could be extended. Mechanical Property:| ITEMS | DATA | REMARKS |
| Ware Rate (10-7cm3/Kgm) | 1.0 | 3 times higher than that of the timber |
| Degree of Corrosion (g/m2) | ≥±2 | 7times higher than that of the timber |
| Hardness (Shore D) | 70~84 |
|
| Martin Heat Resistance (ºC) | 0~65 |
|
| Density (g/cm3) | 0.97~0.99 | Generally density of the wood is 0.85 |
| Impact Strength (kg.cm/cm2) | 7.1~9.5 |
|
| Compressive Strength (Mpa) | 68.5 | Wood horizontal grain bearing stress is 0.85 |
| Bending Strength (Mpa) | 61.5 | Bending strength of wood is 6 |
| Water Absorption (%) | 0.01 |
|
| Prod Model: |
DSCB-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CITICIC Luoyang Heavy Machinery Co., Ltd, which was the subsidiary of CITIC, is a collectivized company with 30years experience of product designing, manufacturing, installing and technical service. The main products that CITICIC manufactures are the whole-set equipments of mill, hoist, rotary kiln, steam tube dryer, copper-smelting furnace and the related spare parts and acessory products, involving in the industries of mining processing, enviromental protection, chemical, energy, copper and steel smelting, cement industry. During years of development, CITICIC has built up strong manufacturing capacity in the casting and foging work-pieces, heat treatment, mechanical machining, riveting and welding, assembling and installing and etc. Now CITICC has become the manufacturing base of the heavy machinery equipment in the middle of China. Relying on the rich scientific research and professional technical force, strong equipment manufacturing capacity, and internatioanl strict quality control system. CITICIC now supplies whole-set equipment and spare parts for many international projects related in different industries, and many international companies, such as CITICIC's parent CITIC, FL Smith, TSK, Metso, Danieli, SIEMAG, GHH and etc.
