Single Wall Corrugated Pipe Extrusion Line
Pipe Application
* cable protection
* TV, telephone
* glass fiber
* electricity
* control and computer cables
* automobiles, machinery and airplanes
* medical applications
* washing machinery
* dishwashers

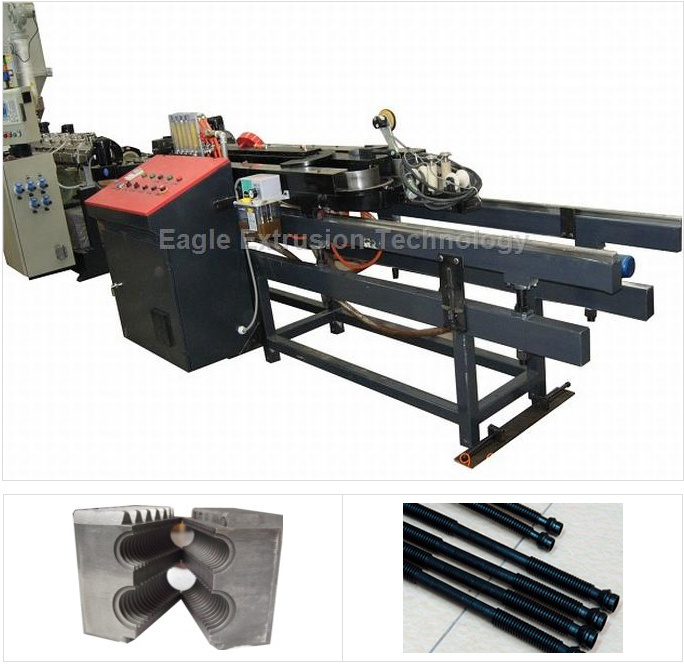

Machine Introduction
This machine can make PP/PA/PE/PVC single wall corrugated pipe.
* closed design
* indirect cooling for moulds block and corrugator
* vacuum equipment optionally available
* high output
* easy mould block change
* Special moulds block design to make to pipe on one set of moulds block in order to reduce the cost
MODEL |
SWP-25 |
SWP-50 |
SWP-90 |
DIAMETER, mm |
4-25 |
16-50 |
20-90 |
MAX.SPEED, m/min |
35 |
35 |
18 |
VACUUM |
OPTIONAL |
OPTIONAL |
OPTIONAL |
Qingdao Eagle Machinery Co., Ltd. is a professional supplier of rubber and plastic extrusion technology and equipments. We have complete and advanced systems in developing, manufacturing and testing. We provide customers Turnkey solution of rubber and plastic extrusion technology and equipments.
Qingdao Eagle Extrusion Technology Co., Ltd. Provides high quality and technology equipments what is designed according to European standard and all of elements sourcing and manufacturing processes are strictly controlled under the European procedures and quality standard. The continues technical innovation, researching, developing and manufacturing for new extrusion technology, equipments and products, including the extruder for pipes, sheets, profiles, films, WPC and the downstream equipments.
Eagle helps customer to create their value maximize with high technology, high quality and reliable equipments.
