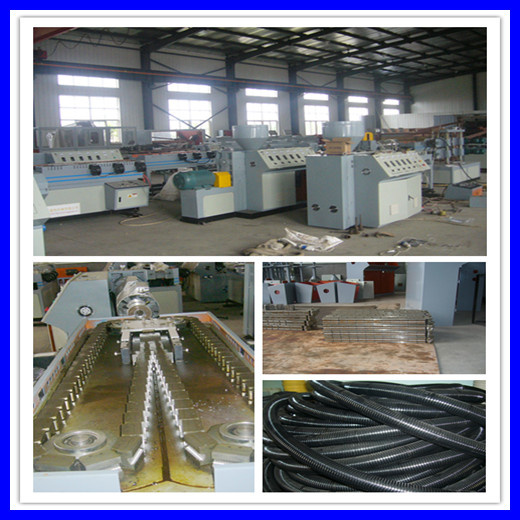

Single wall corrugated pipe production line
High speed corrugated pipe extrusion line
PVC single-wall corrugated pipe extrusion line
Corrugated Pipe Extrusion Line
SJ series of single-screw extruder can apply to produce such products with thermoplasticity as pipes of PP, PE, PS, ABS, PMMA, PVC, as well as plates, sheets, rods, profiles and plastic pellets. According to different raw materials and product specifications, screws with different ratios of length diameter and compression, barrels of different structures and proper driving devices are adopted so as to make products with high quality.
High output and low power consumption.
All hard teeth surface bears experienced heat treatment and fine grinding, the reduction box together with the inner forced cooling system ensure high efficiency, low voice and long lifespan.
The screw has been designed with reasonable geometric parameter. Corresponding to different raw materials and products, screws with different ratios of lengthdiameter and structures are selected to meet different request of clients. In accordance with different requirements of raw materials, the heating section Of material barrel has two structures i. e. Slot section and smooth section. Both screw and barrel are made of alloy steel with excellent properties, which Have advantages of abrasion resistant, anti-corrosion and high strength. The whole set is of reasonable and standard structure, which ensures Convenient operation and easy maintenance.
The main technical parameter:
Item\Model SJ-30B SJ-45B SJ-65B SJ-90B SJ-120B SJ-150B
Length diameter ratio (l/d) 30\33 25\30\33 25\30\33 25\30\33\35 25\30\33\38 25\30\33\38
Screw speed (r/min) 15-110 15-110 10-90 10-90 8-80 8-80
Main motor power (kw) 3-5.5 7.5-18.5 18.5-55 45-110 90-160 110-230
Max extruding (kg/h) 16 60 190 350 500 800
Heating power (kw) 5-8 7.8-12 12-18 16-40 32-55 45-75
Cooling mode FAN & water cooling
|
Pipe diameter |
4.5-9 |
9-32 |
32-50 |
|
Extruder model |
SJ-30 |
SJ-45 |
SJ-65 |
Screw L/D |
30: 1 |
28: 1 |
30: 1 |
|
Output kg/h |
10 |
40 |
80 |
|
Extruder motor |
4 |
11 |
18.5 |
|
Corrugators power kw |
1.1 |
1.5 |
1.5 |
|
Moulds pairs |
42 |
38 |
38 |
|
Cooling mode |
Water Cooling and fan cooling |
|
Extruding speed |
6-10 |
8-12 |
8-15 |
|
Account number mode |
Indction speed |
|
Winding pipe mode |
Automatic winding and manhand |
Qingdao Hegu Wood-Plastic Machinery Co., Ltd. is a joint-stock private enterprise, which is devoting itself to the research, development and production of various wood plastic machine and products, it is always making innovations and keeping up with the times.
As one of the earliest domestic manufactories to develop WPC extrusion line, our company is the professional manufacturer in wood-plastic machinery in China. We have large number of senior experts and technician in WPC extrusion line, molds, process formula and product production. Accumulated rich experience in the area of WPC extrusion line, we can provide all-round service and turn-key project.
Our company has built up partnerships with many domestic institutions and scientific organizations that have been engaged in WPC machinery, and has become the scientific research practice foundation for School of Material Science and Engineering of Shandong Forestry University, and Provincial Key Lab of Biological Material Science and Technology. Besides, our products have developed a market throughout the country and even reached Singapore, Russia, Malaysia, Indonesia, Italy, Iran, Taiwan, etc, winning good fame from customers home and abroad.
Our company has passed the ISO9001-2000 quality system certification, and carried out the production in strict accordance with the quality system certification to ensure the quality of products.
