Home Mould Products Sjsz65/132PVC Series Window and Door Profile Extrusion Line

Sjsz65/132PVC Series Window and Door Profile Extrusion Line

Sjsz65/132PVC Series Window and Door Profile Extrusion Line
Price: US $ 35000-40000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

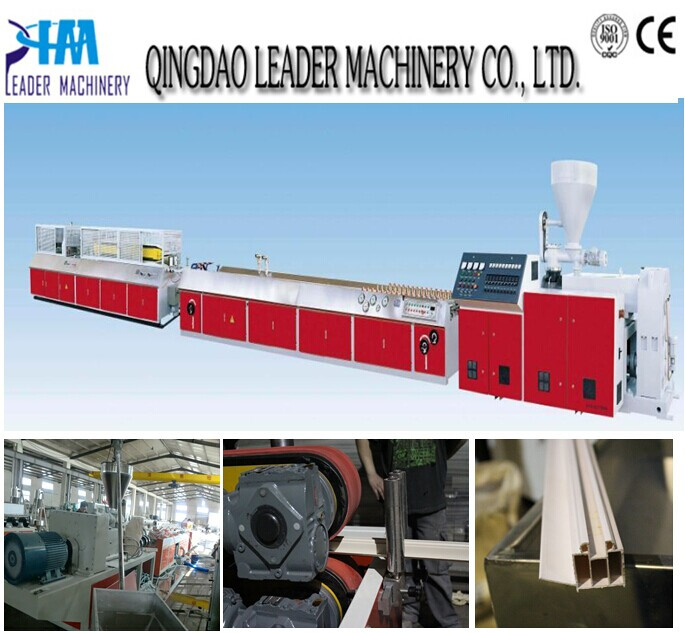

YF series PVC profile extrusion line is mainly used for extrusion of PVC window and door profile, wood-plastic profile, plintus, wall panel and ceiling panel, electrical conduit trunking channel, decorating profile ect. The whole production line includes conical twin screw extruder, die head, vacuum calibrating table, haul off unit, cutting unit, film sticking device, and stacker. According to the different profile section and mould design, varied models of twin screw extruder and downstream equipments can be optional.
Performance and advantages:
Extruder: adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
Vacuum calibrating table: adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
Haul off machine: adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
Cutting machine: the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.

Name of
equipments
Spec./ModelYF210YF240YF500YF800
ExtruderExtruder modelLSZ51/105LSZ65/132LSZ80/156LSZ92/188
Dimension(m)3.3*1.45*2.13.45*1.45*2.255*1.54*2.286.2*1.55*2.7
Capacity(kg/h)50-15080-250100-350200-600
Installed paower(KW)2564115168
Sizing tableDimension(m)4.2*1*1.15.8*1.*1.16.5*1.5*1.16.5*1.5*1.1
Installed paower(KW)18243043
Hauling and cutting machineDimension(m)5.8*1.1*1.75.8*1.1*1.73.1*1.3*1.7
2.2*1.45*1.8
3.55*1.85*1.6
2.5*1.8*1.6
Hauling speed (m/min)0-40-40-30-2
Hauling force (N)30000300003500050000
Max cutting area and width (mm)240*65240*65500*80800*80
Installed power (KW)6688
StackerStacking length(mm)6666

Prod Model: SJSZ65/132
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 200-600kg/H
Product Type: PVC Profile
Screw: Double-Screw
Automation: Automatic
Computerized: Computerized
Certification: GOST
Customized: Customized
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.

Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".

Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
