S&K Flat & Bending Tempering Production Line is specially suitable for producing a various of bending tempered glass, siuch as automotive glass, reflective glass, furniture glass, shower door, display window and etc. It will not require to make any extra moulds for making the tempered glass
Due to our newest advanced technique, it will save your mould cost, save the time to change the mould always. The innovative design has been appreciated by all of our worldwide customers. So, If you want to produce perfect flat tempered glass, our bending and tempering line will be your best choice definitely!
There are three series of bending and tempering furance in our factory:
(1) Double-directions furnace with flat glass tempered processing at one end, and bending
Tempered glass processing at another end.
(2) Single-direction furnace with both flat and bending tempered glass processing at the same end.
(3) The other type is specially designed to produce double curve of tempered glass such as the back
Windshield of automobile.
Widthways (Transverse) Flat & Bending Tempering Production Line Series: Model No. Max. Glass (mm) Min. Glass (mm) Min. Radius (mm) Glass thickness (mm) Production capacity (m2/hour) Power (KW)
SKFB-0603W 600x300 100x250 250 3~6 45 250
SKFB-0905W 900x500 100x300 300 3~6 45 300
SKFB-1208W 1200x800 200x350 400 3~8 28 450
SKFB-1510W 1500x1000 200x350 450 4~12 28 500
SKFB-2010W 2000x1000 400x400 480 4~12 28 500
SKFB-2415W 2400x1500 400x400 650 4~19 28 750
SKFB-2420W 2400x2000 400x400 800 4~19 14 800
SKFB-3020W 3000x2000 500x500 1000 5~19 14 800
SKFB-3030W 3000x3000 500x500 1500 5~19 14 900

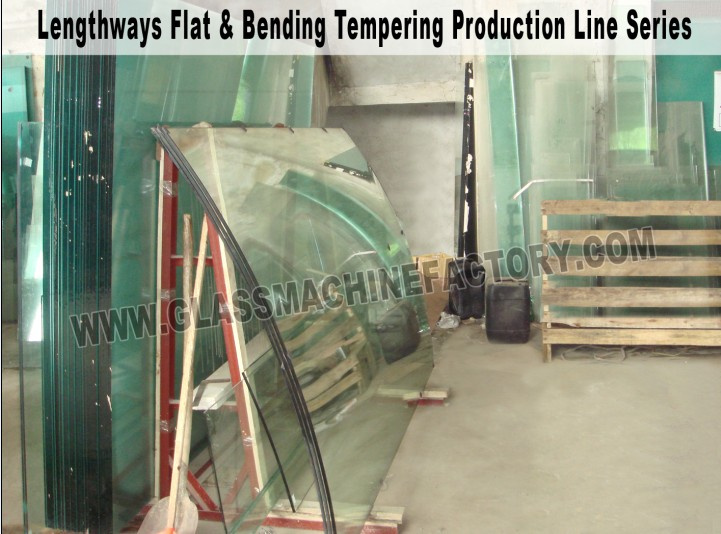

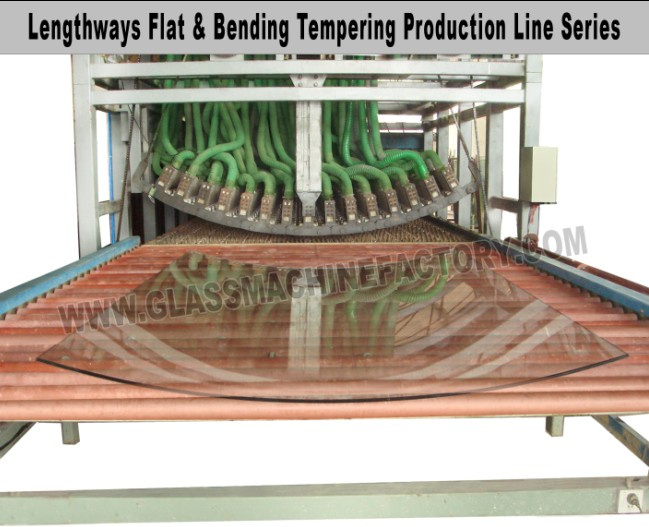

Lengthways Flat & Bending Tempering Production Line Series:
Model No. Max. Glass (mm) Min. Glass (mm) Min. Radius(mm) Glass thickness(mm)
Production capacity (m2/hour) Power (KW) SKFB-1220L
Lengthways Flat & Bending Tempering Production Line Series:
Model No. Max. Glass (mm) Min. Glass(mm) Min. Radius(mm) Glass thickness(mm) Production capacity(m2/hour) Power(KW)
SKFB-1220L 1200x2000 400x400 250 4~12 15 350
SKFB-2020L 2000x2000 400x400 300 5~12 15 450
SKFB-2025L 2000x2500 400x400 400 5~12 15 500

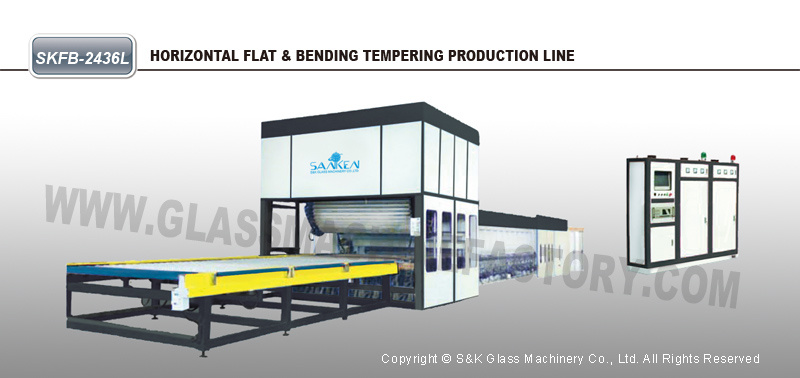

SKFB-2436L 2400x3600 450x450 450 6~12 15 750
SKFB-2442L 2400x4200 450x450 480 6~12 15 800
SKFB-3036L 3000x3600 600x600 650 6~12 14 1200
SKFB-3042L 3000x4200 600x600 800 6~12 14 1200
S&K Glass Machinery Co., Ltd. is a powerful leading manufacturer and exporter of high quality, precision glass making machinery based in China. We specialize in the design, creation and manufacture of machinery for all elements of the glass processing industry.
We offer specialized machinery & tools for all phases of glass manufacturing, including:
- glass straight line edging machine,
- glass straight line double edger machine,
- glass beveling machine,
- glass round edging machine,
- straight line machine with 45 degree angle changing,
- glass irregular shape machine,
- vertical & horizontal glass washing machine,
- vertical & horizontal glass drilling machine,
- glass sandblasting machine,
- glass laminating machines,
- glass engraving machine,
- glass cutting machine,
- water jet cutting machine,
- heat bending or fusing furnaces,
- tempering production line,
- glass insulating line,
- others glass deep-processing machinery.
- with providing full range of excellent quality glass wheels / diamond tools / drill bits and etc glass equipment's spare parts!
For almost a decade we have provided quality glass machinery sales, service, installation, technical & solution support worldwide.
Our enviable reputation has been carefully built over the years by our commitment to fully understanding our clients needs and providing quality machinery at a reasonable price.
Our team of highly qualified and reliable professionals allows us to respond to your specific needs in a timely and knowledgeable fashion. We offer complete, one stop, international support for all phases of glass manufacturing from equipment selection through the actual installation and startup.
Our successful history of international sales allows us to anticipate and minimize any concerns associated with the logistics of shipping machinery to any country.
In addition to mainland China, we have provided export sales and support to many diverse clients located all over the world including: Portugal, Ukraine, Austrialia, Brazil, Mexico, Malaysia, Venezuela, India, Russia, Turkey, Iran, Pakistan, Sri Lanka, Yemen, Bengal, Czech Republic, Egypt, Jordan, Ecuador, Morocco, Mauritius. Our list of satisfied clients is growing monthly.
As a reputed professional Glass Machinery Manufacturer & Exporter, S&K always supply only Top Quality Products with Honesty, Trust & Reasonable Price to customers, So, if you purchase machinery & tools from us, you will get perfect quality products with competitive price directly & DEFINITELY, it will save your time, save your cost and guard against the fault & fraud!
Why wait any longer to solve your glass making machinery needs?
Contact one of our English speaking sales professionals today.
S&K Glass Machinery Limited
