1. Usage

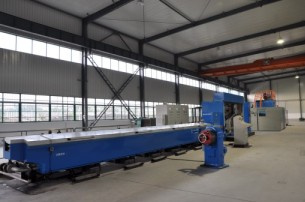

The machine is used to draw copper rod from Ø 8 mm to Ø 1.2~4.0 mm, which can be continuous annealed before the outlet wire wound by the dual takeup device or coiler.
2. Components
Pay-off stand, main drawing machine, continuous annealer, wire accumulator, automatic dual take-up device(or coiler according to customer), wire pointer and stripper, electrical control system, etc.
3. Main Capability Features
1) The drawing blocks are arranged in a horizontal single-bank tilt, and the distance between the cantilevers of all die holders are short, and in equal length, and have a strong stiffness.
2) The surface of drawing blocks is coated with tungsten carbide (powder), which is strong in hardness and abrasion resistance, and has a long life span.
3) The main drawing machine and fix capstan are driven separately, and all the dies can be changed conveniently and easily.
4) Horizontal DC annealer, with stable stretching rate of annealing and easy operation.
5) Continuous dual take up, automatic reel-change, the conductor elongation is not changed when changing the reel. The success rate of automatic reel-change is more than 99%.
6) Driven by DC motor, the imported PLC and touch Screen( Siemens of Preface) are convenient for operator to set and display the parameter on the touch screen.
|
Item |
F-LHD450/9 |
F-LHD450/11 |
F-LHD450/13 |
|
Inlet Wire Dia. (mm) |
Ø 8 |
Ø 8 |
Ø 8 |
|
Outlet Wire Dia. (mm) |
Ø 2.0~4.0 |
Ø 1.5~4.0 |
Ø 1.2~4.0 |
|
Max Die No. |
9 |
11 |
13 |
|
Drawing Capstan Dia. (mm) |
450 |
|
Max. Line Speed(mm) |
18 |
22 |
25 |
|
Main Motor Power(KW) |
250 |
250 |
250 |
|
Total Power(KW) |
725 |
750 |
750 |
|
Annealer Power |
70V× 5000A |
|
Drawing Capstan |
Coated with tungsten carbide |
|
Dual Takeup Standard(mm) |
PND500/630 |
|
Traversing Type |
Motor type |
|
Lubrication Type |
Immersion and spraying |
|
