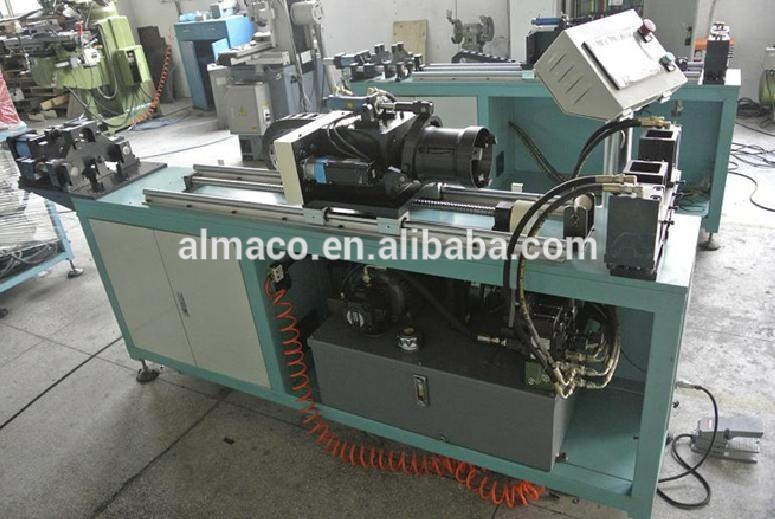

Model: SMACTD1200/B1
Purpose :
The machine is specially designed for punching the copper diameters from 12.7mm to 40mm( can expand to 41.3mm as required ) , and the wall thickness within 1.5mm Max, convenient used in pipeline welding procedure, the machine has a special design that the mold head can be turned inside out and punched from the copper pipe inside only once process, and let the copper pipe a linear motion, 360 degrees revolving, adopt CNC positioning device of clamping the copper pipe can be setuped punching times without number, abnormity punching position, clamping and punching copper pipe are used of hydraulic drive , it is for punching the flute tube wall of household air conditioner, central air conditioning .
Features:
Servo feeding ,
Hydraulic molding ,
CNC program,
Easy Operation ,
Fine Molding Performance
High efficiency
Main specification :
Tube diameter | Dia 12.7~40 * 1.5 changed to dia41.3mm |
Tube legnth | 100-1200mm |
Punching effeciency | 2.5s/holes |
Min distance between two holes | 16mm |
Linear accuracy ( servo driving ) | ±0.05mm |
Rotating accuracy ( servo driving ) | ±0.05mm |
Operation mode | Automatic/Manual/ Inching |
Feeding mode | Manuak |
Hydraulic pressure | 6Mpa |
Air pressure | 0.5-0.7Mpa |
Motor power | 3kw |
Power source | 220V/60HZ/3ph |
Overall size | 2200*760*1250mm |
Weight | 800kgs |
The CNC machine is used to punch and flange copper pipe and aluminum pipe ( thin wall. thickness )for meeting the need of inserting pipe and welding. It is mainly applying in the area air-conditioner tubing.
