Home Mould Products Smls Carbon Steel Pipe Reducer (Con & Ecc)

Smls Carbon Steel Pipe Reducer (Con & Ecc)

Smls Carbon Steel Pipe Reducer (Con & Ecc)
Price: US $ 5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

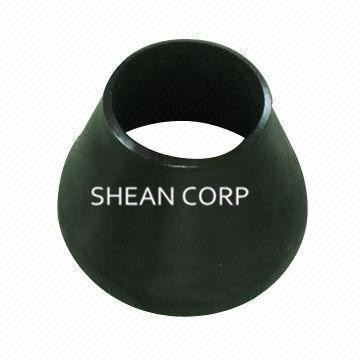

Smls Carbon Steel Pipe Reducer (Con & Ecc)

We shean (cangzhou)corp ltd can supply the best quality Smls Carbon Steel Pipe Reducer (Con & Ecc), also manufacture pipe fitting manufacture, Steel Reducer, Butt Weld Pipe Reducer 12, trustful elbow china, butt welded fittings to customers.

Smls Carbon Steel Pipe Reducer (Con & Ecc) is a kind of fitting that be used for reducing piping size. Carbon Steel Eccentric Reduceris most commonly used. It can be in various shapes. Some of the common shapes are hemispherical, oval, square, rectangular, U shape and I shape.

The specifications of Smls Carbon Steel Pipe Reducer (Con & Ecc) can be designed and satisfied for customers'special requirements.
<1>Thickness: SCH20, STD, SCH40, XS, SCH80, SCH160, XXS
<2>The Reducer size: 1/2"-48"
<3>Standard: ANSI, JIS, DIN, GB
<4>Surface treatment: Transparent oil, rust-proof black oil or hot galvanized.

Shean(cangzhou)corp ltd Smls Carbon Steel Pipe Reducer (Con & Ecc) is made according to ISO9001: 2000 strictly.

Except Smls Carbon Steel Pipe Reducer (Con & Ecc), we shean(cangzhou)corp ltd also manufacture Elbow Machine, Bending Machine etc.
Nominal pipe DN size  Outside Diameter at Bevel Center to End
D1 D2 End to End  L
Series A  Series B  Series A  Series B
20×15 26.9 25 21.3 18 38
25×20 25×15 33.7 33.7 32 32 26.9 21.3 25 18 51 51
32×25 32×20 32×15 42.4 42.4 42.4 38 38 38 33.7 26.9 21.3 32 25 18 51 51 51
40×32 40×25 40×20 40×15 48.3 48.3 48.3 48.3 45 45 45 45  42.4 33.7 26.7 21.3 38 32 25 18 64 64 64 64
50×40 50×32 50×25 50×20 60.3 60.3 60.3 60.3 57 57 57 57  48.3 42.4 33.7 26.9 45 38 32 25 76 76 76 76
65×50 65×40 65×32 65×25 76.1(73) 76.1(73) 76.1(73) 76.1(73) 76 76 76 76  60.3 48.3 42.4 33.7 57 45 38 32 89 89 89 89
80×65 80×50 80×40 80×32 88.9 88.9 88.9 88.9 89 89 89 89  76.1(73) 60.3 48.3 42.4 76 57 45 38 89 89 89 89
90×80 90×65 90×50 90×40 90×32 101.6 101.6 101.6 101.6 101.6 - - - - - 88.9 76.1(73) 60.3 48.3 42.4 - - - - - 102 102 102 102 102
100×90 100×80 100×65 100×50 100×40 114.3 114.3 114.3 114.3 114.3 108 108 108 108 108 101.6 88.9 76.1(73) 60.3 48.3 - 89 76 57 45 102 102 102 102 102
125×100 125×90 125×80 125×65 125×50 139.7 139.7 139.7 139.7 139.7 133 - 133 133 133  114.3 101.6 88.9 76.1(73) 60.3 108 - 89 76 57 127 127 127 127 127
150×125 150×100 150×90 150×80 150×65 168.3 168.3 168.3 168.3 168.3 159 159 - 159 159 139.7 114.3 101.6 88.9 76.1(73) 133 108 - 89 76 140 140 140 140 140
200×150 200×125 200×100 200×90 219.1 219.1 219.1 219.1 219 219 219 - 163.8 139.7 114.3 101.6 159 133 108 - 152 152 152 152
250×200 250×150 250×125 250×100  273.0 273.0 273.0 273.0 273 273 273 273 219.1 168.3 139.7 114.3 219 159 133 108 178 178 178 178
300×250 300×200 300×150 300×125 323.9 323.9 323.9 323.9 325 325 325 325 273.0 219.1 168.3 139.7 273 219 159 133 203 203 203 203
350×300 350×250 350×200 350×150 355.6 355.6 355.6 355.6 377 377 377 377 323.9 273.0 219.1 168.3 325 273 219 159 330 330 330 330
400×350 400×300 400×250 400×200 406.4 406.4 406.4 406.4 426 426 426 426 355.6 323.9 273.0 219.1 377 325 273 219 356 356 356 356
450×400 450×350 450×300 450×250 457.2 457.2 457.2 457.2 478 478 478 478 406.4 355.6 323.9 273.0 426 377 325 273 381 381 381 381
500×450 500×400 500×350 500×300 508.0 508.0 508.0 508.0 529 529 529 529 457.2 406.4 355.6 323.9 478 426 377 325 508 508 508 508
550×500 550×450 550×400 550×350 559 559 559 559 - - - - 508 457 406 356 - - - - 508 508 508 508
600×550 600×500 600×450 600×400 610 610 610 610 - 630 630 630 559 508 457 406 - 530 480 426 508 508 508 508
650×600 650×550 650×500 650×450 660 660 660 660 - - - - 610 559 508 457 - 630 - 630 610 610 610 610
700×650 700×600 700×550 700×500 711 711 711 711 - 720 - 720 660 310 559 508 - 720 - 630 610 610 610 610
750×700 750×650  762 762 - - 711 660 - - 610 610
750×600 750×550 762 762 - - 610 559 - - 610 610
800×750 800×700 800×650 800×600 813 813 813 813 - 820 - 820 762 711 660 610 - 720  - 630  610 610 610 610
850×800 850×750 850×700 850×650 864 864 864 864 - - - - 813 762 711 660 - - - - 610 610 610 610
900×850 900×800 900×750 900×700 914 914 914 914 - 920 - 920 864 813 762 711 - 820 - 820 610 610 610 610
950×900 950×850 950×800 950×750 965 965 965 965 - - - - 914 864 813 762 - - - - 610 610 610 610
1000×950 1000×900 1000×850 1000×800 1016 1016 1016 1016 - 1020 - 1020 965 914 864 813 - 920 - 920 610 610 610 610

Prod Model: 1/2-48 Inch
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Petrochemical Construction or Electric Power
Certificate: ISO
Sample Available: Yes
Size: 1/2"-72"
Way Of Forming: Hot Forming ,Mould
Material: Carbon Steel
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.

Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.

Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
