Soft Pvc sealing strip extrusion machine
1-Raw material: Soft PVC
2-Diameter of the screw: 65mm

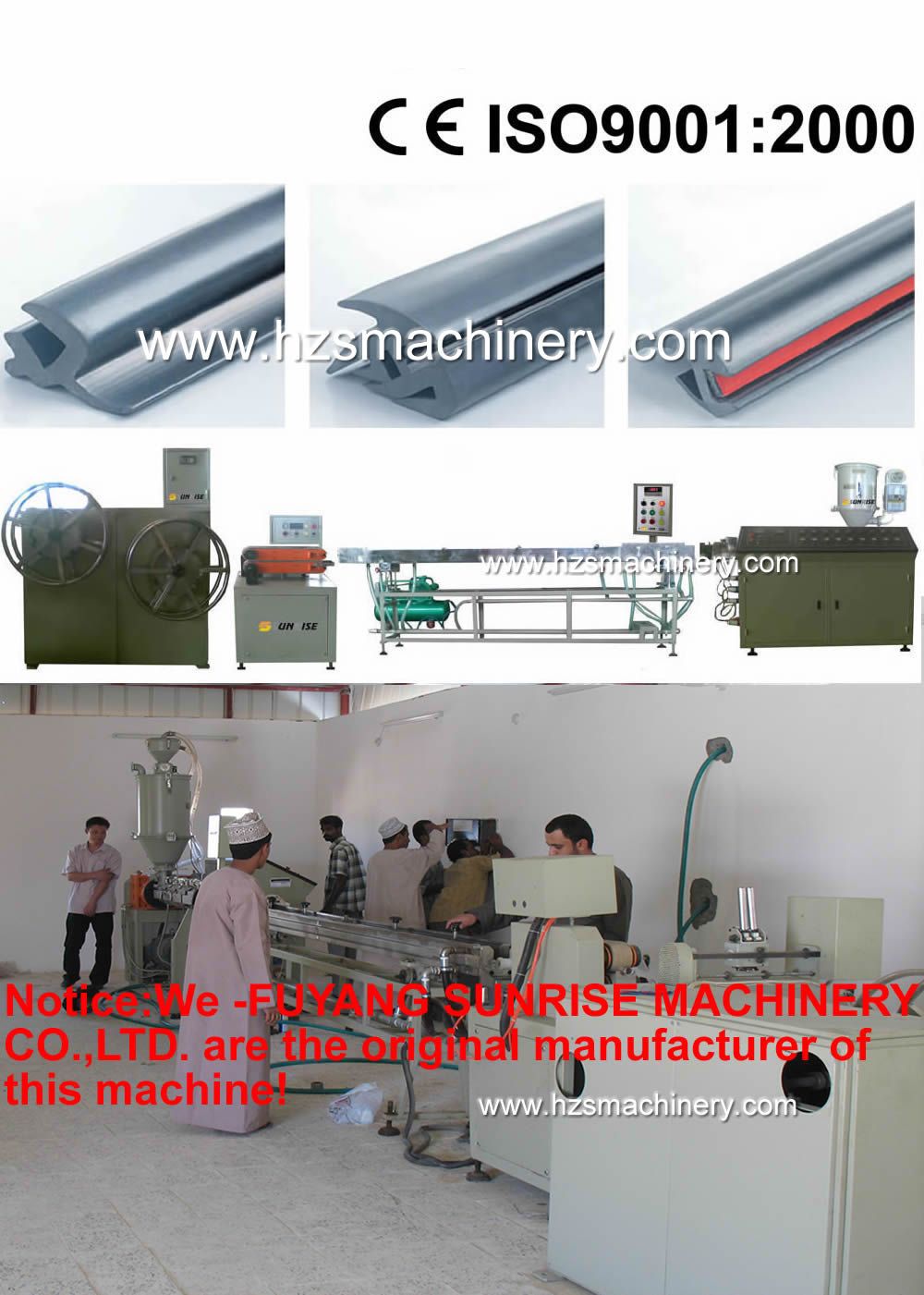

The whole plant are composed of extruder, water cooling tank, hauling machine, double roller and coordinated with different specification of moulds to produce soft PVC sealing strips for aluminum door and windows to instead of the rubber strips.
Complete production line:
1- Automatic material dryer and feeder SLJ-400
2-Extruder
Model: SSJ-65/25
Diameter of screw: φ 65mm
Capacity: 70-80kgs/h
L: D: 25: 1
Material of the screw: 38CrMoALA with nitrogen treatment
HV: >800
Material of the barrel: 38CrMoALA nitrogen treatment
HV: >800
Power of motor: 22kw
Inverter: FUJI
Element: TE and OMRON
Material of heater: Ceramic heater
Material: Best stainless steel
3-Water cooling tank
Length: 4 meters
Material: Stainless steel
Adjustment distance: 500mm
Adjustment direction: Three-dimensional
4-Hauling machine
Length of clamp: 500mm
Width of clamp: 120mm
Adjustment distance: 500mm
Clamping: By pneumatic
Speed: 0.6-6m/min
Power of motor: 1.1kw
Inverter: FUJI
5-Double roller (easy to operate)
6-Air compressor
7-Crusher
8-Moulds
Hangzhou Sunrise Machinery Co., Ltd. Established on August, 6th. 1990. We are specialized in Plastic extruder, Plastic recycling machinery. We have our own R&D team and manufacture centers. So we can as per our customer's special requirements to supply and making the advanced and high quality machines. In order to expand the international markets, we have cooperated with some of our partner factory to establish a branch company: Fuyang Sunrise Machinery Co., Ltd. For exporting the machine and importing the parts which we need.
In accordance with years of experiences in plastic machinery manufacturing, we have formed plastic pipe, profiles extrusion and plastic recycling machinery 3 series, and have the ability to do the turnkey projects of plastic industry.
We are very attentive to improve the quality and after service. One year Guarantee, one year free parts and 24 hours technic supporting are our routine.
