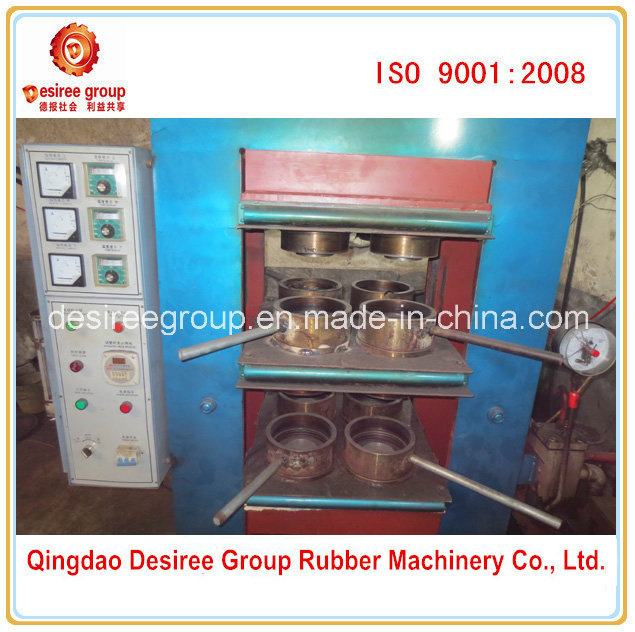

Solid Tyre Making Machine
Function:
Mainly used for the rubber vulcanization, with different shape moulds, it can make many kinds of rubber products. Such as silicon wristband, rubber tile, solid tire, rubber slippers, shoe sole, rubber stamp, etc...
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. Can provide hand control and electric control as customer's request.
5. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
Our Service:
1. One year warranty.
2. Any demand, we will give feedback within 24hours.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
About us:
We are a professional manufacturer and foreign trade company, with good reputation of providing customers with the best service and online buying experience.
We provide many kinds of rubber machine:
Vulcanizing machine, Rubber mixing mill, Rubber crushing mill, Rubber refining mill, Rubber kneading machine, Foaming press, Conveyor belt production line, Batch-off cooler, Rubber cutter, Tire curing press, Tire building machine, Tire dynamic balancing machine, Scrap tire recycling machine etc.
We have professional R&D team, modern and high-precision machining equipments, standard quality & control system. You can get reliable and good price products from us.
Welcome your inquiry.
Solid Tyre Making Machine Model No. |
XLB-D500*500*2 |
XLB-D600*600*2 |
XLB-D750*850*2 |
XLB-D600*600*2 |
Nominal clamp mould force (MN) |
0.8 |
1 |
1.6 |
2 |
Plate size |
500*500 |
600*600 |
750*850 |
600*600 |
Number of working layer |
2 |
2 |
2 |
2 |
Piston diameter(mm) |
250 |
300 |
360 |
400 |
Stroke of piston (mm) |
250 |
250 |
500 |
300 |
Distance between hot plate(mm) |
125 |
150 |
250 |
150 |
Unit area pressure of hot plate(Mpa) |
3.2 |
2.78 |
2.5 |
5.6 |
Power(KW) |
2.2 |
2.2 |
3 |
3 |
Overall size(L*W*H)(mm) |
1800*550 |
2000*700 |
2000*1000 |
2550*960 |
1600 |
1700 |
1900 |
2100 |
Weight(kg) |
2000 |
2600 |
4300 |
5000 |
Close mould speed(mm/s) |
≥12 |
≥12 |
≥12 |
≥12 |
Open mould speed(mm/s) |
≥12 |
≥12 |
≥12 |
≥12 |
