Sport Tile Making Machine

Name: Sport Tile Making Machine
Brand: themouldinfo.com
SKU: 692623962
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 4500-150000set
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Qingdao Green Rubber Machinery Co., Ltd.

Showroom Product Company Profile

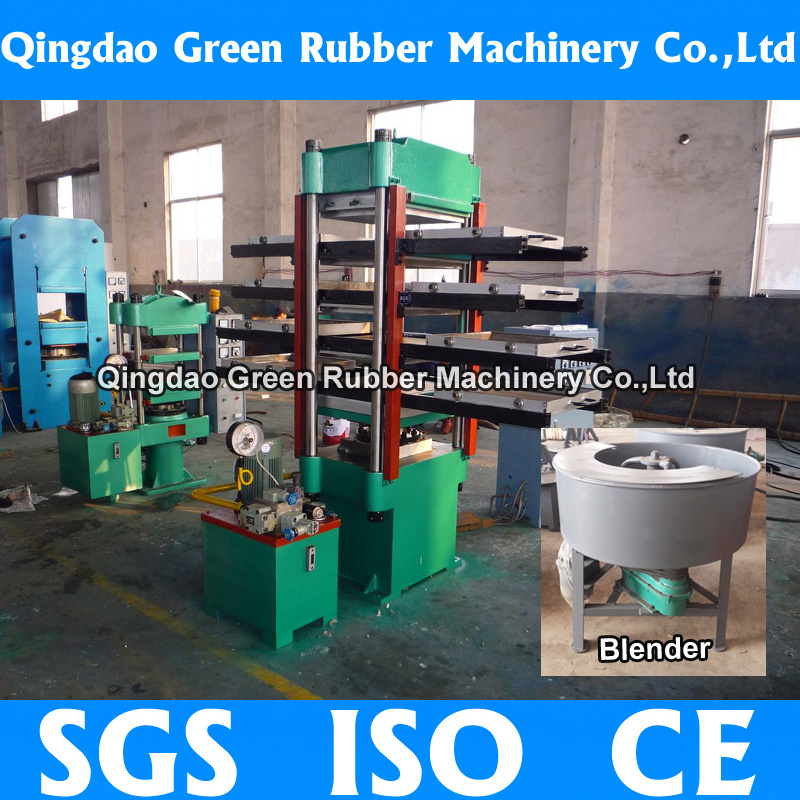

1. Rubber floor tile making machine, floor tile vulcanizer

2. Following is the main processes
(1) Conching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir. This process requires for 4- 6 minutes ( because the adhesive is easy to cure, so stir it when use ).
(2) Weighing raw materials: Weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles.
(3) Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
(4) Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8 minutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.
(5) Inspecting: Inspect the surface of the floor tiles, no aberration, no flaw, line with the product quality.
(6) CE Standards and ISO9001: 2008 / SGS Certification

3. To produce rubber floor tile you also need to use blender machine and floor tile moulds.

Qingdao Green Rubber Machinery Co., Ltd.
If you are interested in our machine, please contact with me.
Looking forward to hear from you.
Phone: 0086-13963958791

Main parameters/Model	XLB--D/Q300x300x2	XLB--D/Q350x350x2	XLB--D/Q400x400x2	XLB--D/Q600x600x2
Nominal and mould force	0.25	0.25	0.5	1
Specification of hot plate	300x300	350x350	400X400	600X600
Number of working layer	2	2	2	2
Piston diameter	140	140	200	300
Max stroke of piston	250	250	250	250
Distance between hot plate	125	125	125	125
Unit area pressure of hot plate	3.5	2.04	3.1	2.78
Motor power	2.2	2.2	2.2	2.2
weight	1000	1000	1500	2700
Overall size	12005801200	12005801200	17806001300	204708101600
comment:we kan be individually customized according to customer requirements.

Prod Model:	XLB-D Rubber Vulcanizer Machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Production Rubber Products
Plunger:	Chilled Alloy Cast Iron
Pedestal:	Cast Iron, Section Steel H
Heating:	Electric, Steam, Oil
Press:	Hydraulic
Company:	More Than 30 Years Experience
Cerificate:	CE/ISO9001/SGS
Warranty Time:	One Year
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Material Processing Machine
Certification:	CE, ISO, SGS

Qingdao Green Rubber Machinery Co., Ltd (Old name is Qingdao

China Rubber Machinery Factory) was established in 1968, one of a China professional manufacturer in rubber machine field with high-tech technology. We obtain ISO9001: 2008, CE and SGS certification. Our business spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc.

To produce high quality and the most suitable machine for customers to use is our service aim.

Our company mainly producing: Waste tire recycling machine, rubber powder production line, reclaimed rubber production line, rubber vulcanizing machine, rubber plate vulcanizing machine, tire vulcanizing machine, rubber mixing mill, rubber extruder, rubber filter, rubber cutting machine, rubber sheet cooling line...

Our factory near by the Qingdao Port, so that can greatly lowering the logistics cost. Our company have technical cooperation with experienced engineers whom come from US and Germany. Constantly improve the technical level, make the products comply with international quality standards. All of our products are comply with international quality standards and are greatly appreciated in a variety of markets around the world. We can designing and manufacturing all kinds of special rubber machinery equipment and non-standard rubber machinery equipment according to user requirements.

So that our high quality products and outstanding customer service, have gained a global sales network

Our well-equipped facilities and excellent quality control throughout all stages of production, enable us to guarantee total customer satisfaction.

1. Our machines all pass inspection load test operating before delivery.

2. We provide one year' S guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of our guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translator to you to solve equipment matters.

3. Our company have return visits regularly; Including equipment' S maintenance, troubleshooting and customer feedback.

4. Complete after-sales service

If you are interested in our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to establish successful business relationships with new clients around the world in the near future.
