Delivery time: 30-45days after receiving T/T deposit
Min. Order: 1set
Advantages:
1)XIANGLE has steady world famous parts suppliers(Take-up Roller made in Tanwai, PLC is DELTA brand, made in Japan)
2)More reasonable&scientific design, eg: Drawing cone fully submersible water-solubility drawing oil, Fuction: Clean, cooling, antirust, lubrication
3)Power save, perfect performace
4)Bright&shiny surface
5)20years experience, one and half hours to Shanghai Port

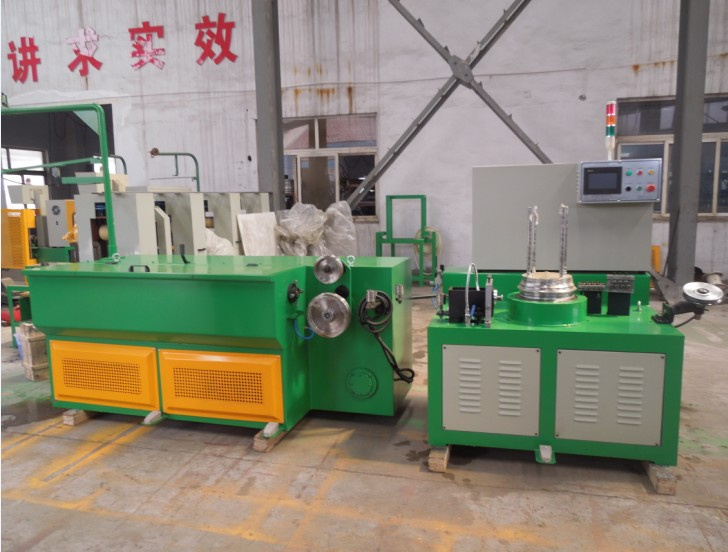

Main technical parameter(take-up roller dia. Φ 300mm):
Inlet wire: Φ 1.8mm-Φ 1.5mm
Outlet wire: Min. Φ 0.5mm
Maximum number of drawing dies: 17(buyer owned)
Design Speed: 120MPM/max
Most suitable production speed: 100MPM/max
Control system: PLC Dual inverter control
Slip ratio of M/C: 1 to 16 is 15.6%
17 is 12%
Main motor: 7.5HP AC motor and 7.5HP inverter
Take-up motor: 2.2HP ACmotor and 3HP inverter
Coling: Φ 0.5-18kg; Φ 0.6-25kg
Dia. Of take-up roller(Taiwan): Φ 300mm
Brake: Free brake
Power consumption: 4~7kw
Dimension(L*W*H)mm: 4300mm*1300mm*1800mm
Weight(kg): 2900kg
|
Inlet wire |
Φ1.8mm-Φ1.5mm |
|
Outlet wire |
Min.Φ0.5mm |
|
Maximum number of drawing dies |
17 |
|
suitable production speed |
100MPM/max |
|
Control system |
PLC Dual inverter control |
|
Main motor |
7.5HP AC motor and 7.5HP inverter |
|
Take-up motor |
2.2HP ACmotor and 3HP inverter |
|
Dia.of take-up roller(Taiwan) |
Φ300mm |
Jiangyin Xiangle Machinery Manufacturing Co., Ltd. Has established itself as one of China's leading names in the field of Wire Drawing Machines, Annealing Furnace, and other related accessories with our promise of quality products that stay ahead of time.
Our main products are series stainless steel wire drawing machines, Spring wire drawing machine, annealing machine lines, take-up machines, copper wire drawing machine and other related equipments. We believe that perfect high-quality products only come from zero defect production process. We have adopted the advanced production equipment and technology, scientific & standardized management system and strict testing standards to ensure international advanced level on quality, structure, performance and appearance.
Our Management Concept
Quality is the life: To perfect quality is the continual goal of our company staffs all the time
Service is the key: To provide satisfying service is our responsibility.
Innovation is the power: Holding the concept of technology and innovation, we will try our best to develop new product.
Integrity is the principle: Seek truth from fact, manage company with good faith.
We make each component with all our mind and energy; Meet multiple requirements all from clients' interests. We hope to create mutual benefit with our clients!
Your choice, we care! . Please feel free to contact us for further information.
