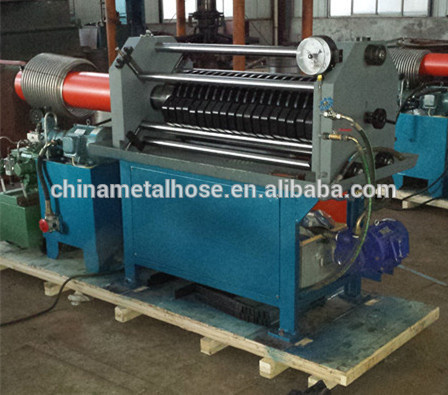

Stainless steel horizontal bellow forming machine/bellow presser
Product description
Size range: up to DN300
Thickness:3*0.5mm
Pitch distance:5-8mm, adjustable
Height of convolution:6-8mm, adjustable
No.of convolutions:5-8
Forming medium: water
Forming method: dies/moulds
Technical data
ID |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
Single wall thickness |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
1.2 |
1.5 |
Double layer wall thickness |
0.25*2 |
0.3*2 |
0.4*2 |
0.50X2 |
0.60X2 |
0.70X2 |
0.80X2 |
0.90X2 |
1.0X2 |
DN |
Actual ID |
Wall thickness |
Width of strips |
Height of convolution |
Pitch distance(mm) |
DN50 |
Φ50 |
0.30 |
158 |
9 |
9 |
DN65 |
Φ65 |
0.30 |
205 |
12 |
12 |
DN80 |
Φ79.85 |
0.40 |
252 |
15 |
15 |
DN100 |
Φ99.80 |
0.50 |
315 |
17 |
18 |
DN125 |
Φ124.88 |
0.60 |
394 |
21 |
19 |
DN150 |
Φ150 |
0.60 |
473 |
23 |
20 |
DN200 |
Φ199.84 |
0.80 |
630 |
25 |
22 |
DN250 |
Φ249.84 |
0.80 |
787 |
30 |
25 |
DN300 |
Φ299.84 |
0.80 |
944 |
35 |
30 |
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
Wuxi Longterm Machinery is a professional supplier of all type of industrial equipment, flexible products, etc...With many years of history, the main items are as follows:
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. Flexible metal hose/ Expansion joints manufacturing machineries & products
-expansion joint
- flexible metal hoses
--vacuum bellows & hoses
- hose & pipe fitting
-welding seamer
-bellow forming machine
Mechanical bellow forming machine,
Mechanical hose forming machine
Hydro bellow forming machine
-flexible metal hose making machine
-hydraulic metal hose making machine
-EGR tubes
-EGR tube making equipment
-Braiding Machine
-camlock coupling
The above products have been exported to Ukraine, USA, Japan, Turkey, India and Egypt, etc...
In China. We are capable total in-house design, manufacturing & testing capabilities.
