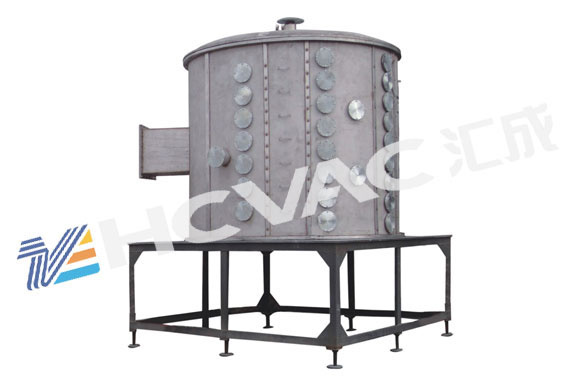

Stainless steel plate PVD coating system:
Is designed for stainless steel to get a decorative coating by ion plating technique, the ion plating layer has a real metal texture, which is much different from chemical coating, the chamber diameter of this series is 1800-2300mm, and the height is 3600-4500mm, it can coat three sheets that size is 1220*4000mm; With three sets of large power vacuum pumping systems, high pumping speed, short cycle time, with 34-56 pieces of round arc targets, they are installed reasonable, at the same time, equipment is equipped with pulsed bias system, which make the adhesion of coating strong, color of coating uniform, Touch screen+PLC control achieved full automatic of equipment.
Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional ion coating equipment. This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about stainless steel plate, car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
|
Mode |
LH-1800 |
LH-2000 |
LH-3000 |
LHW-2000 |
LHW-3000 |
LHW-4000 |
LHW-5000 |
|
Vacuum chamber dimension |
φ1800x2000 |
φ2000x2000 |
φ3000x3000 |
φ2000x6000 |
φ3000x6000 |
φ4000x8000 |
φ5000x10000 |
|
Vacuum system |
Mechanical pump+Roots pump+diffusion pump/Turbo molecular pump+holding pump |
|
Coating system |
arc evaporation source,coating auxiliary ion dedicated power supply |
|
Inflation system |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
Mass flow meter |
|
Control mode |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
Manual or automatic |
|
Ultimate vacuum |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
5.0x10 -4 Pa |
|
Remark |
Above machine parameters for your reference only, specific according to customers' special requirement of practical process design. |
