Stainless Steel PVD Ion Coating Machine,Plasma Coating EquipmentStainless Steel Ion Coating Machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: Stainless Steel Ion Coating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment
Stainless Steel Ion Coating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

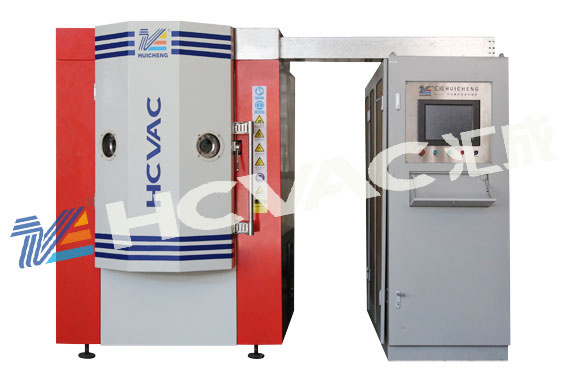

This is our machine:
![]()
Samples coated by our machine:
![]()
![]()
Specifications:
Mode
Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Coating mode and main confirguration |
Eight multi-arc targets |
Twelve multi-arc targets |
Fourteen
multi-arc targets |
Twenty
multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person:Mandy Liu
Phone No +8615989615980
