Steel Fiber Machine Shearing Type

Steel Fiber Machine Shearing Type
Price: US $ 6300/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

Steel fiber machine shearing type

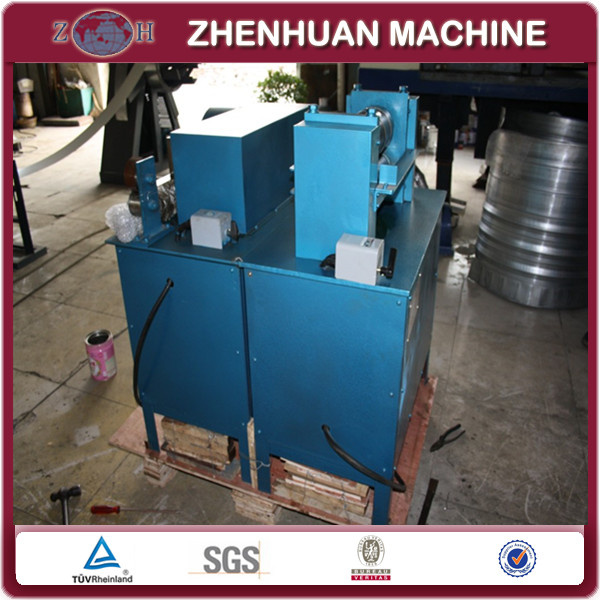

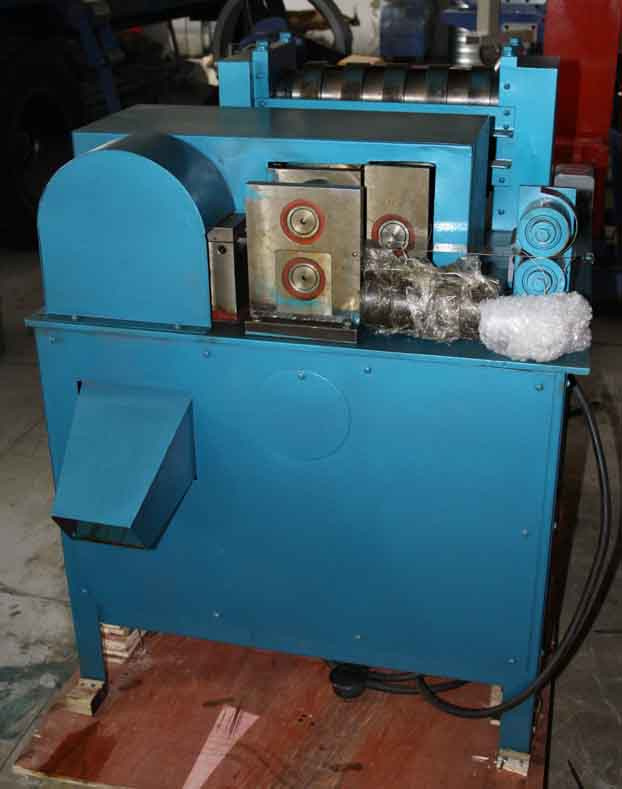

             picture of the Steel fiber machine shearing type

I Description of the Steel fiber machine shearing type

This ZH-10 machine is for forming & cutting steel fibers mainly used for reinforcement concrete. It can release post-tension inside the steel wire, strengthen steel wire, feed wire in uniform speed, form into certain shape, cut-to-length, etc. This machine also is also combined with the grinding device for grinding cutting tools.

By quickly changing different moulds, the machine can produce wave shape, hook shape, twisting shape, etc.

II Main technical data of the Steel fiber machine shearing type

2.1 Driving motor power: 2.2kW

2.2 Max. length: 60mm

2.3 Max. diameter: 1.0mm (carbon steel)

2.4 Tensile strength of steel fibre: 1100MPa

2.5 Productivity: about 2~2.4 tons per 24 hours (by feeding 15 wires together)

2.6 Machine weight: 270kg

2.7 Dimension: about 1700 x 760 x 1000mm

III Price of the Steel fiber machine shearing type

Price basis: FOB Shanghai

Payment: 30% down payment by T/T in advance, the balance by T/T against fax copy of B/L

Lead-time: within 30 days after receiving down payment

Note: Above price already includes three set of moulds for hook, straight and wave types. If need other moulds, extra cost will be USD 800 per set.

IV Guarantee of the Steel fiber machine shearing type

Within one year since the date of B/L



Our company will be your reliable and professional supplier of the post-tension steel pipe making machine in China. We have been in this line for more than 10 years and have provided the corrugated post-tension tube forming machines to many countries all over the world!

Add: No. 243, Ninghai Road, Rugao City, Jiangsu Province, China 226500
Tel: 0513-87628369
Fax: 0513-87635890

CodeProductivity
(kg per shift)
Motor power
(kW)
Max. fiber length (mm)Fiber thickness
(mm)
Machine weight (kg)
SFS-150015003601.5900
SFS-7007002.2401.2700
SFS-4004002.2300.8450
SFS-3003001.5300.5450

Prod Model: ZH10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Cutting Length: 60mm
Productivity: About 2~2.4 Tons Per 24 Hours (by Feeding 15 Wires
Dimension: About 1700 X 760 X 1000mm
Max. Diameter: 1.0mm (Carbon Steel)
Driving Motor Power: 2.2 Kw
Brand Name: Zhenhuan
Model Number: Zh10
Machine Weight: 270kg
Tensile Strength Of Steel Fibre: 1100mpa
Our company is an manufacturer and export agent, specialized in cold roll forming machines, metal processing machines, tube machines, pipe machines, transformer making machines, fin making machines, wire bending machines, motor making machines, tank making machines, welding machines, etc. We are supply our customers worldwide with our good qualities, competitve prices and satisfied after-sale services.
