Steel mould for CCM
We are rolling mills and continuous casting machine manufacturer in China, which the final products are round steel, deformed steel and wire rod. There will be good cooperation chance If you - Have the raw material of billet or steel scraps
- Want to build a steel factory
- Don't know how to process or design the production line
- Want to add the production line
- Want to purchase the accessories
- Want to reduce the invest budgets since the high cost from European countries and long term RIO period
Description:

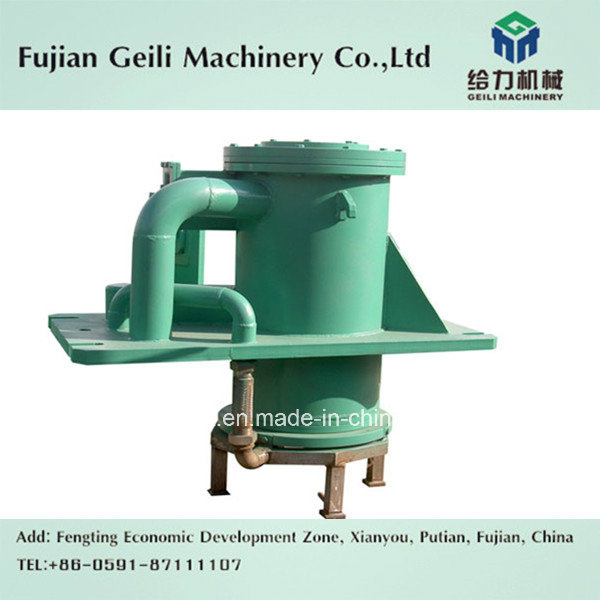

The mould is for R3M to R13M with high quality, it is capable of producing square, round and rectangular billets.
The mould is the key equipment of a continuous caster for the satisfactory fromation after cooling and preliminary casting of liquid steel and the smooth production
Adventage:
- Lower investment
- Steady performance
- Products are customized for different needs
- Production capability can be adjusted according to customers'request
- Low energy consumption
Working Process:
Mechanical part:
1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary coolings spraying frame
9) Secondary coolings spraying pipe
10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling
12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage
Auxiliary system
34) Hydraulic system
35) Discharging device for secondary coolings steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements
2) Providing turn-key service of designing, manufacturing, installation and commissioning for the whole production lines to meet customers requirement
3) Providing foundation layout and arrangement diagram for your plant
4) Providing technical support. We will send various technical staff to the site until the final products are meet to customers' own request.
5) Good after-sales service will be provided. Our long-term technical service will be provided if you want to adjust the production line, develop new products or improve the equipment.
6) Quality warranty will be promised.
Please send us more informations about your project, we would like to give you proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
FUJIAN FENLI MACHINERY EQUIPMENT CO. Ltd is a professional & reliable manufacturer specializing in rolling mill and continuous casting machine. Our supplying includes designing, manufacturing, selling and installing full sets of equipments of turn-key service and after-sales service.
Our factory is located in Fujian, it covers an area of 40000 square meters. We have more than 180 workers, 18 senior engineers, 12 senior technicians, 16 administrative staff. We also have many co-operated manufacturers. The founder of our company has more than 25 years' experience in heavy industry. With modern management, advanced technology, strong designing and superior equipment quality and after-sales service, over the years, we won the domestic and overseas market.
Our main products are various specifications of continuous casting machines, rolling mills, steel-making auxiliary equipments, crystallizer, pull machine, ladle, wire rod packing machine, flying shear, roller, reduction box, pinch roll, dust catcher, dummy bar, cooling bed, etc.
We always keep the principle of " higher quality, professional service, competitive price", sincerely welcome you to come and visit our factory to get more information.
