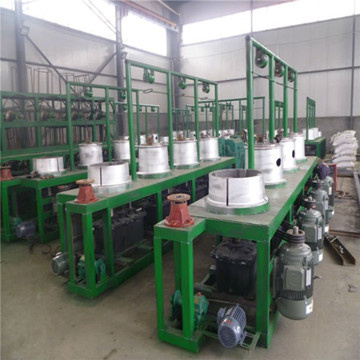

Wire Drawing Machine, Steel wire Dry Drawing Machine
1. Dia. Of Block: 200-1200mm
2. Block number: 2-12
3. Inlet wire: 4~14mm
Dry Drawing Machine for steel wire & rope industry
1. Dia. Of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
1. Blockn: By overlaying welding & Tungsten Carbide coating to assure long life using.
2. Die box: with Lubricating Powder Cavity & Water Cooling Cavity, and can be universal adjusted to assure the wire inlet angle for drawing.
3. Electric Control system: with Siemens S7-300 PLC & Inverter for the setup & auto programming suitable different drawing technology, and ensure the stable operating.
|
Type |
560 |
550 |
450 |
350 |
|
Material Intensity |
δ b≥ 110kg/mm2 |
120kg/mm2 |
128kg/mm2 |
δ b≤ 140kg/mm2 |
|
Max. Dia. Of Inlet Wire |
6.5mm-4.4mm |
6.5mm |
4mm |
2.6-1.5mm |
|
Min. Dia. Of Outlet Wire |
2.6mm-1.8mm |
2.2mm |
1.6mm |
1.2-0.8mm |
|
Block |
1 |
1 |
1 |
1 |
|
Max. average condensation |
0.3 |
20% |
20% |
21% |
|
Total Condensation |
78-88.5% |
78% |
77.90% |
78% |
|
Max. Speed of Block |
245m/min |
260m/min |
280m/min |
200m/min |
|
Total Power |
22/30kw |
18.5/22kw |
11/15kw |
5.5/7.5kw |
