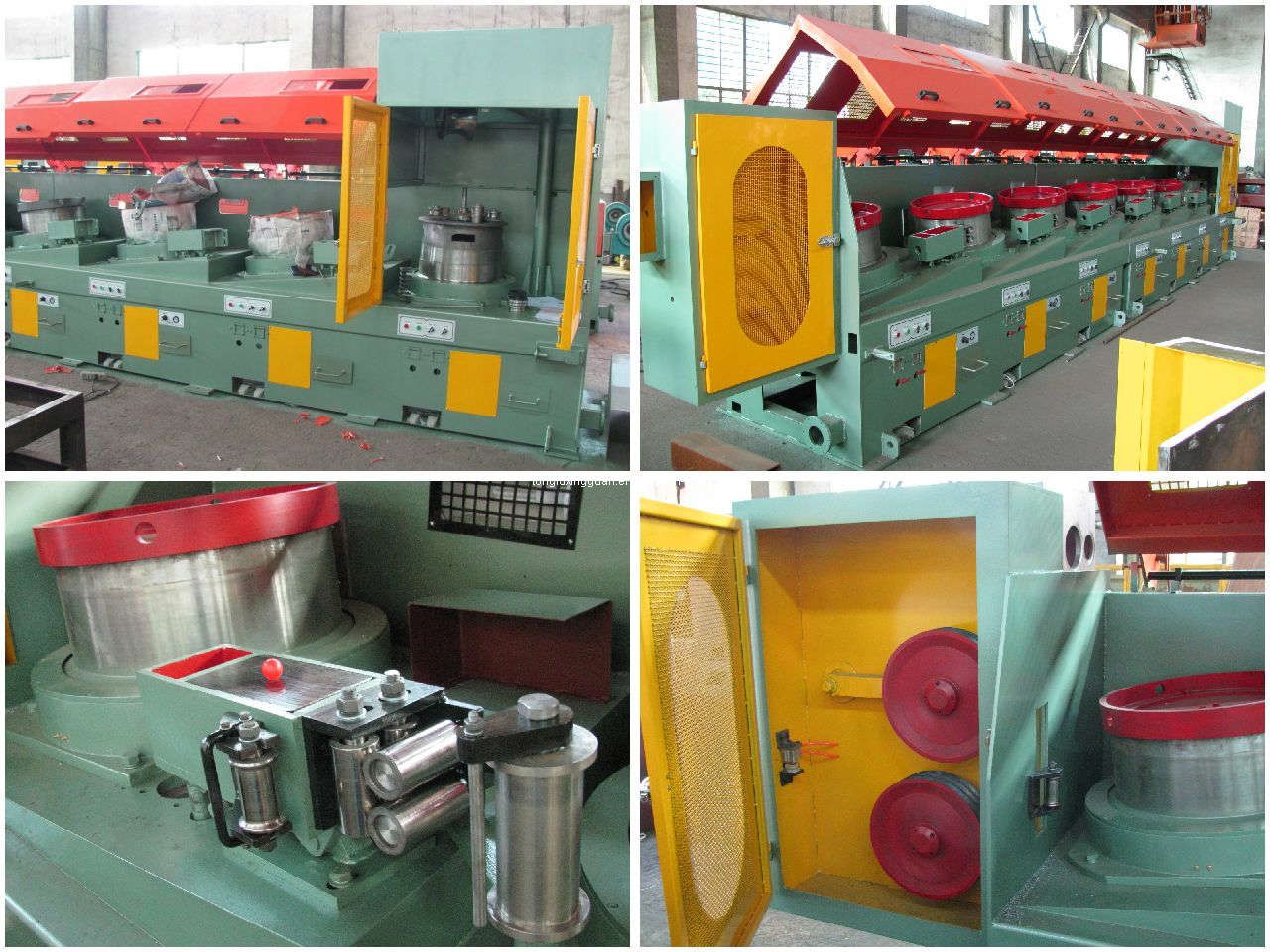

LZ-7/560 Straight Line Drawing Machine
1, Main parameter
1) Draw No. 7
2) Material to treat: Low, middle, high carbon steel
3) Material strength: <1250Mpa
4) Inlet Dia.: 5.5mm-6.5mm
5) Outlet Dia.: 1.8mm-2.5mm
6) Max. Total compressibility: 88%
7) Max. Drawing force: 7000N
8) Traction: Asynchronous motor with inverter control
9) Input by touch screen
10) Speed: 10m/s
11) Output: 18.5MT/per day/ for Dia. 2.0mm wire (880KG per hour)
12) Total power: 30KW+22KWX6+18.5KW
13) Size: 9650x2000x2400mm
A. The first motor is 30KW power, and the next six motors are with 22KW power. The type of first draw is wire-accumulating type, in this way, when the spools be changed, the pre-processing still remains working. The next six drawing be straight line drawing. The first die is rotation die.
B. The machine frame is made of steel square pipe and armor plate, usually four capstan (head) are composed on one frames, so there are two frames for seven capstans, it is with good integrity.
The cooling system for capstan be fan cooling plus water cooling combination, it is with good effect of cooling. The cooling for dies be compulsory water cooling.
The pneumatic system is used for the spool loading and unloading, convenient for operators to load or unload spools, and locking system is adopted so as to prevent the spools from moving away. Safeties stop and wire break protection are adopted so as to improve the security for operators.
C. Configuration
Motors with inverter control.
Inverter be high performance vector type inverter with brand of DELTA
Relay be Panasonic product
Proximity switches be OMRON product
Analog output proximity switches be CONTRINEX, Swiss
Main shaft bearing: NSK.
PLC control system
Touch screen input
All rotation parts that touch with wire are coated with Wolfram-carbid, with hardness more than HRC58.
