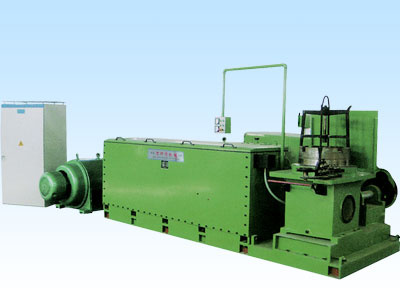

Steel Wire Drawing Machine/ Wire Drawing Machine (FR-560)
As wire drawing, reduces the diameter of the wire, wire can be reduced diameter by the drawing die.
Steel Wire Drawing Machine is suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
Steel Wire Drawing Machine is suitable for the ferrous metal wire and non-ferrous wire, it can drawing the thin wire, which is the professional equipment for drawing wire.
Advantage of Wire Drawing Machine
1. Lower noise and durable
2. High speed
3. Good quality, best service
Technical parameter of Wire Drawing Machine
| 1 | Apply to | Metal wire |
| 2 | Raw diameter | 3.2-5.6mm |
| 3 | Finished diameter | 1.3-3.0mm |
| 4 | Receiving plate diameter | 560mm |
| 5 | Drawing times | 9 times |
| 6 | Drawing speed | 300m/min |
| 7 | Total compressibility | 80% |
| 8 | Average compressibility | 18.25% one time (according material) |
| 9 | Machine motor | 130KW |
| 10 | Supply voltage | 380V 50Hz |
| 11 | Dimension | 5980*3500*1840mm |
| 12 | Weight(reference) | 14000kg |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
