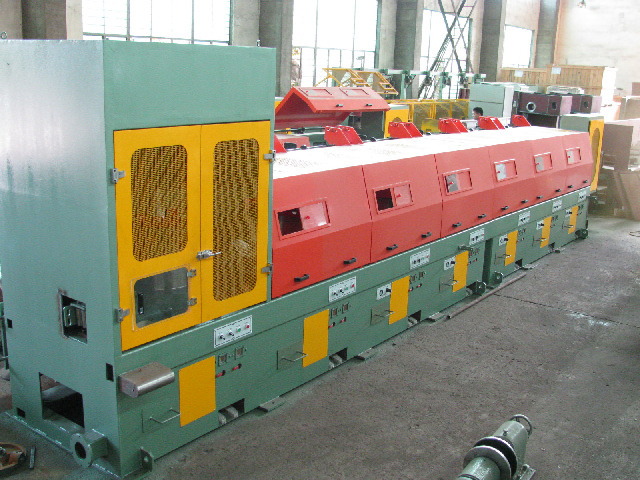

Middle drawing machine
Spool pay-off model ZWF-800 + Straight line type medium drawing machine + Spool take-up model ZWS-630
Capacity: 3 sets machine for annual 5000 tons of welding wire.
Technical data:
Draw NO.: 8
Material to treat: Low, middle carbon steel
Inlet wire strength: ≤ 950Mpa
Inlet dia.: 2.4-1.85mm
Max. Outlet dia.: 1.65-0.8mm
Max. Total compressibility: 84%
Max. Drawing force: 5300N
Max speed (for last draw): 15m/s
Traction: Asynchronous motor with inverter control
Take up: Rear constant tension control, adjusted by pneumatic control
Data input: Touch screen
Total power: 11KWx8+11KW
Size: 10076X2000X1945mm (main machine)
Lay-out type: Left-handed
Description:
A. The machine frame is made of steel square pipe and armor plate. Four capstans (head) are composed on one frames, so there are two frames for eight capstans, it is with good integrity.
The cooling system for capstan: Fan cooling (unified cooling) plus water cooling combination. The cooling for dies: Compulsory water cooling.
The pneumatic system is used for the spool loading and unloading.
Safety stops and wire break protection are adopted so as to improve the security for operators.
B. Configuration
Motors with inverter control.
Inverter be high performance vector type inverter with brand of YASKAWA
Relay: Panasonic product
Proximity switches: OMRON product
Analog output proximity switches: CONTRINEX, Swiss
Main shaft bearing: NSK.
PLC control system: Siemens
Touch screen input: Siemens
Cables at site be provided by buyer.
All rotation parts that touch with wire are coated with Tustgen-carbid, with hardness more than HRC58.
