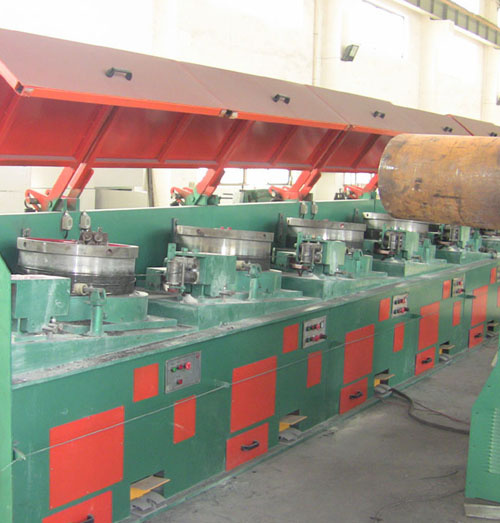

Straight Line Wire Drawing Machines (LZ-6/560)
| Price: |
US $ 4000-5000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Wire Drawing Machine can be used to draw wires of low,medium and high carbon steel,aluminum and copper,etc.It is especially suitable for batch processing of precise wires in manufacture industry of screws,nails,electric leads,wire ropes and springs.Description:
Straight Line Wire Drawing Machine is mainly used to draw wire of low, medium and high carbon steel, copper and aluminum etc. It is with kinds of auxiliary equipments together and it is an ideal equipment for processing industries of galvanized steel wires, wire ropes, springs, electric leads, nail and other wires used in construction projects.
This machine is with protective cover and separate electric control system.
Technical data:| Model: | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
| strength of inlet wire: | ≤1250MPA |
| Draw die: | 2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2.9 | 2.9 |
| max.inlet wire: (mm) | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 12.7 |
| min.outlet wire: (mm) | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.1 | 1.6 | 2.2 | 2.6 |
| Draw speed: (m/s) | 25 | 20 | 20 | 16 | 15 | 15 | 12 | 12 | 8 |
| Motor: (kw) | 7.5-18.5 | 11-22 | 11-30 | 15-37 | 22-45 | 22-55 | 30-75 | 45-90 | 55-110 |
| Suitable material: | Low, medium and high carbon steel, stainless steel, galvanized steel wires, spring wires, tyre wires, all kinds of alloy etc. |
We are one of the Chinese professional manufacturers work at different types of Wire Drawing Machines since 1974. The following items are the related products of the Wire Drawing Machines, kindly pls view the details as follow. If any query you have for Wire Drawing Machines, pls don't hesitate to contact with us at any time and we are willing to further assist you!
| Prod Model: |
LZ-6/560 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Lz-6/560 |
| Drum Block: |
560mm |
| Number Of Block: |
6 |
| Power Of Per Machine: |
22-55kw |
| Inlet Wire Diameter: |
6.5mm |
| Outlet Wire Diameter: |
2.5mm |
| Type: |
LZ Straight-Line Metal Drawing Machine |
| Usage: |
Rope Wire |
| Outlet Diameter: |
1.1mm |
| Max. Number Of Block: |
6 |
| Certification: |
CE |
Hangzhou Drawing Machine Manufacturing Co., Ltd was established in1974. Our export company name is CSUN International Co., Ltd. Till now, we already have more 40 years history and experience in this industry!
We are the first professional manufacturer who organized the wire drawing machines and wire straightening machines study, design and manufacturing together since 1974. We have the strong technical support, high experience engineers team, good after sales service and the perfect production process flow project made for customers all over the world according to their detail requirement! The machines manufactured by us are with advanced technical processing and suitable for 100% export standard.
Our factory were the former Department of Electrical and drawing rope equipment manufacturing industry sentinel enterprises, Shanghai Institute of Mechanical and Electrical Design technology partners, our machines with high reputation in China and all over the world. We are one of the famous and excellent factories of wire drawing machines and wire straight & cutting machines in China and we passed the ISO9001 International Quality Certification and CE certification etc. The machine's quality is steady and operation easy.
The mainly machines include pulley type wire drawing machines, water tank wire drawing machines, straight line wire drawing machines, inverter vertical drawing machines, wire straight and cutting machines, wire welding machines, sharp machine, descaler machine, 650/550 Cold Rolling Rib Reinforcing Steel Bar Machines, cooper wire drawing machines, aluminium wire drawing machines, CO2 gas shielded welding wire production lines etc. It's total more than 100 kinds of specifications of products and mostly machines and technology passed patent protect. Especially for the environment friendly descaler machine & low noise high-speed wire drawing machine are all feedback well by mostly customers!
The main machines are high accepted by domestic and abroad customers all over the world, special export to Middle East, Southeast Asia and EU etc. Such as Saudi Arabia, Syria, Uzbekistan, Russia, India, Malaysia etc. Our technology is high accepted by China Science and Technology Achievement Award. The existing factory area is 16, 000 square meters.
We guaranteed our machines at a competitive and reasonable price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
