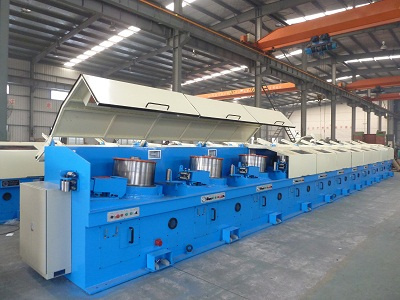

Straight Steel Wire Drawing Machine

Straight Steel Wire Drawing Machine
Price: Negotiable/Set
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Contact Supplier
Beijing Orient Pengsheng Tech. Co., Ltd.
Showroom Product Company Profile
Steel Wire Drawing Machine

Dry, straight and high speed steel drawing machine is used for various steel wires making application. The machine design is based on steel strength, inlet& outlet diameter, line speed and other request. With the latest technology and high machine quality, the machine could run at very high speed matching other world famous competitors.

Characters:
1. Rigid structure
2. Powered motor
3. Sensitive tension roller
4. High speed
5. Special capstan surface treatment
6. Drawing capstan inner water colling and out colling
7. Die water cooling and rotating die
8. First class of electric elements
9. PLC control + touch screen operation
10. Smart programmable control and operation
11. High safety standard
12. Efficient and cost-effective

Specification

Capstan Dia.(mm)

Inlet wire

Dia.(mm)

Outlet wire Dia.(mm)

Speed

(m/s)

A.C. Motor(kw)


LZ n/300

300

3.2

0.2

30

7.5-11


LZ n/400

400

3.8

0.4

30

7.5-11


LZ n/450

450

4

0.5

25

11-15


LZ n/500

500

4.2

0.6

25

15-22


LZ n/560

560

5.5

0.8

20

22-45


LZ n/600

600

6.5

1

20

22-55


LZ n/700

700

9

1.5

18

45-75


LZ n/750

750

11.5

2

18

55-90


LZ n/900

900

16

2.4

15

90-132


LZ n/1250

1250

20

3

15

110-150

Prod Model: Drawing Machine
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Certification: ISO9001:2000, CE
Warranty: 1 Year
Usage: Prestressed Steel Wire
Beijing Orient Pengsheng Tech. Co., Ltd., dedicates to introduce the best machines from top Chinese manufacturers to worldwide customers. With many years' professional experience and background in the area, we would like to be with the customers to choose the exactly right machine and technology from China.
