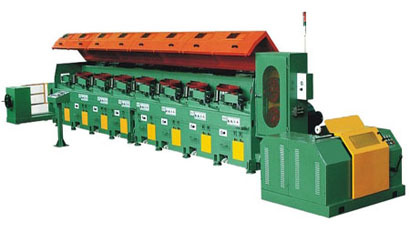

This product can be used to draw steel high, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on. Welding wire, electric wire and cable alloy wire and other kinds of metal wire.
Draw NO.: 8
Material to treat: Low, middle carbon steel
Inlet wire strength: ≤ 950Mpa
Inlet dia.: 2.4-1.85mm
Max. Outlet dia.: 1.65-0.8mm
Max. Total compressibility: 84%
Max. Drawing force: 5300N
Max speed (for last draw): 15m/s
Traction: Asynchronous motor with inverter control
Take up: Rear constant tension control, adjusted by pneumatic control
Data input: Touch screen
Total power: 11KWx8+11KW
Size: 10076X2000X1945mm (main machine)
Lay-out type: Left-handed
ZheJiang Tonglu Tianlong Wire Drawing Machine Factory is located in the beautiful scenery in the Fuchun River - Fuchun Jiang Zhenxiao door zone, Yan Ziling stool away from the resort 2 km, 70 km away from Hangzhou, Hangzhou travel hotline, transportation is very convenient.
The factory covers an area of 20 acres, plant area of 8, 000 square meters. Machinery and electrical equipment, fabricated metal products industry, the Department of Metal Wire Drawing Machine, Straightening and Cutting Machine, scrap metal cutting machines and related equipment for the professional to train them. Our self-developed "Dragon" brand wire drawing machinery and equipment for a reasonable, advanced technology. Product arts have been sold to 25 provinces and autonomous regions in Southeast Asia, Director Liu Guozhong sincerely welcome new and old customers cooperation and support.
Our factory main products are: LFD-450/10 a 10-mode aluminum wire drawing machine, LFD-550 / 717 die copper wire drawing machine, LHT-650 / 9 copper giant drawing machine, LHT-450 / 9 copper wire drawing machine small, LFT-550/11 copper and aluminum wire in the drawing machine, LHT-280/17 high-speed copper wire drawing machine, LHT-II -20 small copper wire drawing machine model, LHT-200/17 copper and aluminum wire small drawing machine, LHT-200/13 small copper and aluminum wire drawing machine, SSI-3 along double wire drawing machine, YJ350 Park plate shearing machine, SPI-0.6-2 automatic lifting and traversing machine, straightening machine of supporting production, Pointing Machine, welder, paint charter.
Our factory always adhere to "quality first, customers above, heavy contract, keep promise" business approach, products from three bags, genuine good service. Provision of technical advisory services, long-term responsible for providing parts, prompt delivery, consignment agent.
