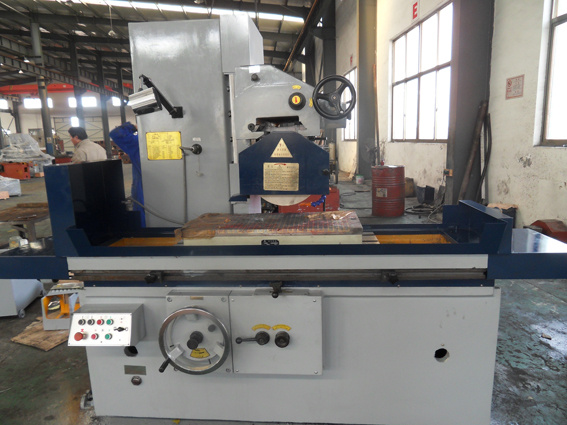

Surface Grinding Machine (M7132 320x1000mm)

Surface Grinding Machine (M7132 320x1000mm)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
The machine uses mainly the wheel periphery for surface grinding, but the wheel end surfaces can also be used for grinding the vertical surface of the workpieces.
When grinding, the workpieces can be placed on the magnetic chuck
Or fixed directly on the table or with other fixtures according to various workpieces.
The machine can used for grinding steel, casting iron or Non-ferrous metals. It can be used for grinding side face of groove and flange.

2. Features
The lift system use high-precision ballscrew to confirm accuracy.
The wheelhead can be moved transversely on the saddle by hydraulic
System or by hand. Easy to operate.
The saddle togther with the wheelhead have quick lift device and move up and down for vertical feed on the column. It can be moved by hand or by hydraulic system

Table Size 320x1000mm
SPECIFICATION M7132
Size of workatable(L× W× H)mm 1000× 320
Max. grinding capability(L× W× H)mm 1000× 320× 400
Abrasive wheel dim(D× d× W)mm 350× 127× 40
Speed of grindwheel  r/min 1440
Spindle motor Power KW 5.5
Speed r/min 1440
Vertical movment of the grinding head by hand wheel Per strock mm 0.01
Per revelotion mm 1.00
Rapid lifting motor Power KW 0.37
Speed r/min 1440
Oil pump motor Power KW 3
Speed r/min 960
Oil pump motor Flow ml/r 100
Pressure MPa 2.5
Coolant pump motor Power KW 0.125
Speed r/min 2800
Speed of the worktable m/min 3-25
Accurancy mm/mm 1000: 0.015
Surface roughness μ m Ra0.63
Prod Model: M7132 320x1000mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Established in 2005, as a growing factory located in dafeng city, jiangsu province, we, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of surface grinders machine and shot blast cleaning machines for many years. Also we can supply all kinds of lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.

With high quanlity and competitve price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina. Poland, Turkey and so on.

In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.

Also quanlity assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warrantly to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quanlity, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyerand we will forever do our best to proceed and gain further sucess. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
At present our main products range as following:

Surface grinding machine
Manual Surface grinder: M618A, M820, M250
Auto electric Surface grinder: MD618A, MD820, MD250
Auto Hydraulic Surface grinder: MY618, MY820, MY250, MY3060, MY3075, M230A, M7125A, M7135A, M7140A
Full Auto (PLC) hydraulic Surface grinder: SG2050AHD, SGA2550AHD, SGA3063AHD, SGA4080AHD, SGA40100AHD
Wheel Head Moving Surface grinder: M7130, M7132, M7140, M7150, M7160, M7163
Full Auto PLC Column moving surface grinder: SG50100AHD, SG50160AHD, SG60120AHD, SG60160AHD, SG60220AHD, SG50100SD, SG50160SD, SG60120SD, SG60160SD, SG60220SD,
Cylindrical grinding machine (MW1320, M1332, M1350, M1363, M1380), Universal cylindrical grinding machine M1420, MW1420, M1432B, M1450, M1463) and so on.

Shot blast cleaning machine
- Q31 Rotary barrel( drum) type shot blast cleaning machine
- Q32 Tumblast type shot blast cleaning machine
Q324, Q326, Q328, Q3210 tumble rubber belt shot blasting machine
Q3210 Auto loading tumble shot blasting machine
- Q35 Turn table type shot blasting machine
- Q36 series car type shot blasting machine
- Q38/48/58 series hanging chain type shot blasting machine
- Q76 series car type shot blasting machine
- Q37 Spinner Hook tpye shot blast cleaning machine
- Internal & external pipe series shot blasting machine
- Q69 Roller type pass through shot blast cleaning machine
Q69 series Steelplate/profile series shot blasting machine (horizontal)
QH- Section/H-Bean structural steel series shot blasting machine ( Vertical)
- Steel plate pretreatment line
- Air recycling type/ Mechanical recycling shot peeing machine
- Internal & external pipe series shot blasting machine
- Big Sand Blasting room
- Blasting coating production line
- Sand blasting machine
- Dust collector (pleated bag with vibrating mechanism, cartridge filter with pulse valve)
- Blast wheels(impellers), shot blasting turbines system
( motor direct driven or belt driven 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, 30kw, 75kw ),
- All kinds of spare parts
-blades, control cage, impeller, wheel hub, end liner, top liner, side liner, chamber liner.
