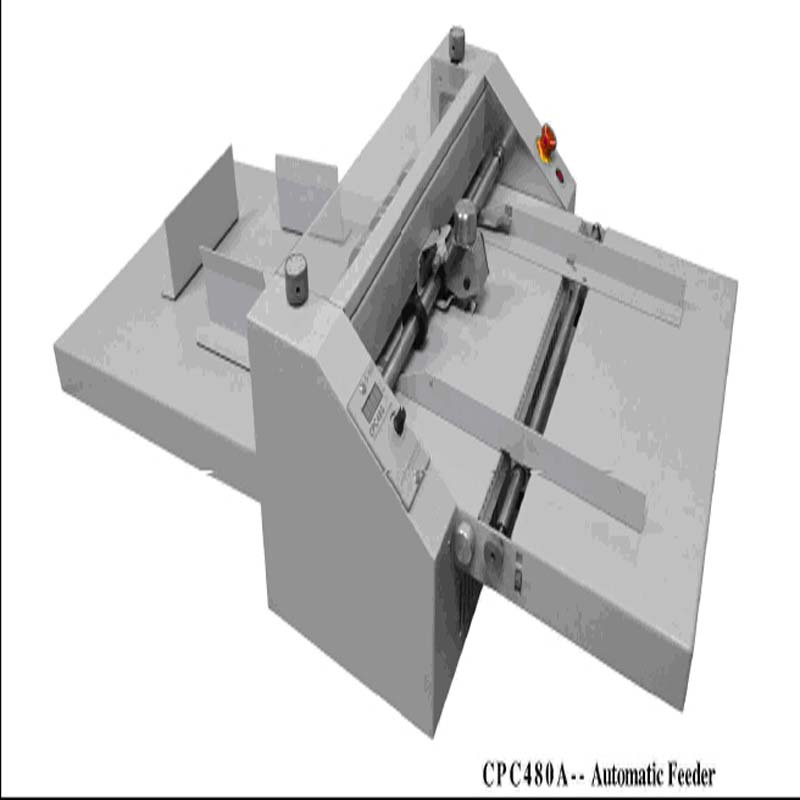

CPC480A Table top Multi-Purpose Creasing machine
1. Automatic feeder for more professional use and higher speed. (CPC480A)
2. Equipped with individual modules, it is convenient and fast to assemble, disassemble or locate them, and also can combine them freely to crease, crease the spine and hinge, perforate and trim according to the requirements.
3.High-efficiently and speed-variable electromotor, LCD for machine operating speed, stepless regulation of speed.
4.Designed for adjusting pressure outside, convenient to adjust the pressure of two ends.
5.Clear safety-cover to see the creasing state or open it to stop operation promptly. With an individual rush stop switch, it is more safe and reliable to avoid the appearance of any hidden danger.
6.Adjustable feeder and fine adjusting knob outside. Easy to position centering or leaning.
7.The hanging type of delivery section is designed for magnetism sucking positioning by the sides and knob fastening by the back end.
8.Normal equipped with paper downholders, or with metal block optional.
9.Adopts the stainless steel material, it is perfect, wear-resisting and beautiful.
Specifications:
| Max. width of the sheet | 480mm |
|
|
|
|
|
|
Max. width of the sheet: 480mm
Rotational speed: 90-1400/min
Shaft Diameter: 36mm
Power supply: 220V/110V (optional)
Machine weight: 41kg
Dimensions: 1150*620*300mm
Speed: 10-200sheets/min (A4)
1. Normal equipped with: 2 modules of paper guide wheel
2. Choose the different individual to use according to the demand: module of creasing, module of creasing the spine and hinge, blade of trimming, blade of perforating, paper guide wheel.
