Tam-M-1 Transparent Crystal Pad Mould
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

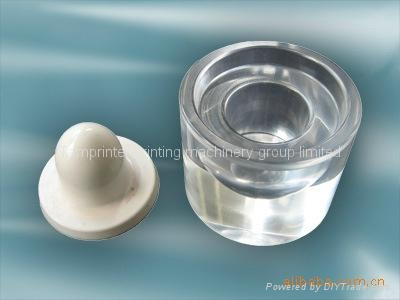

TAM-M-1 Transparent Crystal Pad Mould
Also called silicon pad mould and crystal mould, rubber pad mold. Professional OEM processing, cash transactions.
Please tell us the size, quantity, hardness and send picture as well before you place an order.
Pad printing means transferred the pattern to the toy steel products through the silicon pad.
Silicone printing quality requirements fine, no impurities, good resilience, oil well, a clear pattern printing.
Application:
Mainly for the printing of plastic toys, electroplating products, electronic toys, trademarks and irregular pattern. Pad printing is done on the pattern plate carrier through the rubber head, then the pattern is transferred to the toy steel products.
Pad Silicone Product Instructions:
First, put a clean mold cleaning with detergent, then dry the mold in water or with an air gun to dry, and apply a release agent.
Second, silicone pad, the normal ratio of silicone oil, based on customer requirements and given, if a customer requires a large area of the printed pattern, required soft head, the more increase in silicone oil. Instead, you need to glue head hardness of not less silicone oil added, the hardness general printing of plastic to 15A ~ 25A ° is suitable, if the silicone oil added is too large, too soft plastic head, showed a limited number of print even the best silicone quality will be undermined its molecular weight silicone oil, and produce no wear, no solvent and aging.
Third, introduce the normal ratio is as follows: 100 g of silica gel was added 30 grams of silicone oil, plastic head hardness 15A °, adapt printing pattern alloy car Aberdeen and small contact area is relatively small products. As required pressure contact surface or need soft head, the proportion of silica and silicone oil can be 100: 30,100: 50 range, but note that the larger the amount of silicone oil added, the softer the rubber head, the number of printing of , abrasion resistance and solvent resistance will reduce and reduce, the number of printing products will be reduced, resulting in increased costs, wasted materials.
Fourth, a chemical reaction and the addition amount of the curing agent of colloidal silica proportion as follows: Take 100 g of silica gel, 50 g of silicone oil, followed by mixing with stirring until the silicone oil with the silica stir evenly, then 2% of the total weight of silica and silicone - 3% hardener is added, and then stirred for 2-3 minutes, it can be evacuated. Evacuation time is generally no more than 10 minutes, taking too long, colloidal quickly cured, it will affect the quality of inverted plastic.
Pad Silicone Product Features:
With good elasticity, deformation, high temperature, and low shrinkage, mainly for the hand model design and development of small quantities of copy products.
Silicone printing parameters of conventional products
model
|
Exterior
|
Viscosity (cps) |
Hardness (A) |
Tensile strength (Mpa) |
Tear Strength (KN / m) |
Elongation(%) |
Hardener added ratio (%) |
Operation time (h) |
Curing time (h) |
912 |
Red, yellow, white and green
|
≤33000 |
28±2 |
≥3.5 |
≥24 |
≥420 |
2~3 |
0.5 |
2~4 |
916 |
Red, yellow, white
|
≤35000 |
15±2 |
≥3.5 |
≥24 |
≥420 |
2~3 |
0.5 |
2~4 |
902 |
Red, yellow, white and green
|
≤33000 |
28±2 |
≥3.2 |
≥20 |
≥380 |
2~3 |
0.5 |
2~4 |
918 |
Red, yellow, white
|
≤33000 |
28±2 |
≥3.6 |
≥26 |
≥420 |
2~3 |
0.5 |
2~4
|
| Prod Model: |
TAM-M-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Crystal Pad Mould |
| Size: |
Customize |
| Usuage: |
Pad Mould Making |
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: America market.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;
6. Import and export business of the above items.
Applications:
It mainly applies to the printing process and pre-postpress of plastic and hardware products. Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.
Involved in the industry:
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.
