Seal usually has four parts:
1. lip ends: a wedge shape, at the end of the pressure shaft surface, play a role in sealing fluid.
2. sealing lip: flexible elastomer sealing lip is under the influence of pressure designed to be mechanical vibration and sealing fluid changes can remain stable sealing effect, and serves to maintain stable contact surface of the shaft lip role of the state . Also spring may improve the sealing lip to the shaft of the pressing force, since maintaining this pressing force.
3. Dust Lip: dust lip is not in contact with the spring deputy lip. It serves to prevent dust intrusion effect.
The engaging portion: seal fitting portion is fixed in the cavity hole while preventing fluid from leaking and invasion from the contact surface between the seal and the inner surface of the outer circumferential surface of the cavity effect. Also metal frame when the seal is fixed in the cavity, the protective effect.

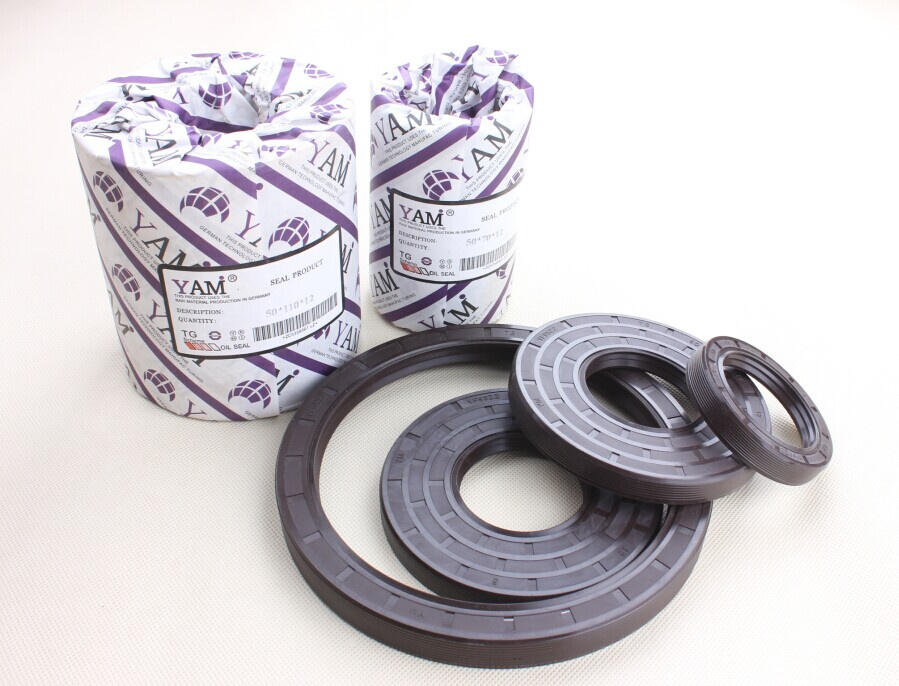

Product Name: rotary seals (TC)
Series: rotary seals
Remarks: Working pressure: ≤0.3bar
Working temperature: -40 ~ + 120 ºC
Rotational speed: 25m / s
Working medium: water, oil, grease, etc.
material: mainly NBR, FKM
custom-made is welcome
The below is some specification and wholesale prices of TC oil seal:
| USD/100pcs |
|
| USD/100pcs |
|
| USD/100pcs |
|
| USD/100pcs |
| spec. | price |
| spec. | price |
| spec. | price |
| spec. | price |
| 8*22*7 | 7.77 |
| 15*30*10 | 8.73 |
| 19*32*7 | 9.71 |
| 22*35*10 | 10.68 |
| 8*22*8 | 7.77 |
| 15*32*7 | 8.73 |
| 19*35*10 | 10.68 |
| 22*38*8 | 11.65 |
| 10*17*5 | 7.77 |
| 15*35*7 | 10.68 |
| 19*40*10 | 11.65 |
| 22*38*10 | 11.65 |
| 10*18*7 | 7.77 |
| 15*35*10 | 10.68 |
| 20*27*5 | 8.73 |
| 22*40*7 | 11.65 |
| 10*20*5 | 7.77 |
| 15*40*10 | 12.62 |
| 20*28*5 | 8.73 |
| 22*40*8 | 11.65 |
| 10*22*8 | 7.77 |
| 15*42*7 | 12.62 |
| 20*30*5 | 8.73 |
| 22*40*10 | 11.65 |
| 10*25*8 | 7.77 |
| 16*28*7 | 8.73 |
| 20*30*7 | 8.73 |
| 22*42*7 | 11.65 |
| 10*25*10 | 7.77 |
| 16*30*7 | 8.73 |
| 20*30*10 | 8.73 |
| 22*42*10 | 11.65 |
| 10*26*7 | 7.77 |
| 16*30*8 | 8.73 |
| 20*32*5 | 8.73 |
| 22*45*7 | 13.59 |
| 12*22*5 | 7.77 |
| 16*30*10 | 8.73 |
| 20*32*7 | 8.73 |
| 22*45*8 | 13.59 |
| 12*22*7 | 7.77 |
| 16*32*7 | 9.71 |
| 20*34*7 | 10.68 |
| 22*45*10 | 13.59 |
| 12*22*8 | 7.77 |
| 16*35*7 | 10.68 |
| 20*35*5 | 10.68 |
| 22*47*7 | 13.59 |
| 12*24*7 | 7.77 |
| 16*35*10 | 10.68 |
| 20*35*7 | 10.68 |
| 22*47*10 | 13.59 |
| 12*25*8 | 7.77 |
| 16*40*10 | 12.62 |
| 20*35*8 | 10.68 |
| 22*48*7 | 13.59 |
| 12*25*10 | 7.77 |
| 17*30*5 | 8.73 |
| 20*35*10 | 10.68 |
| 22*48*10 | 13.59 |
| 12*26*7 | 7.77 |
| 17*30*7 | 8.73 |
| 20*38*8 | 11.65 |
| 22*50*10 | 13.59 |
| 12*28*7 | 8.73 |
| 17*30*8 | 8.73 |
| 20*36*10 | 11.65 |
| 22*52*10 | 14.56 |
| 12*30*7 | 8.73 |
| 17*30*10 | 8.73 |
| 20*40*5 | 11.65 |
| 23*47*7 | 13.59 |
| 12*32*5 | 9.71 |
| 17*32*5 | 9.71 |
| 20*40*7 | 11.65 |
| 23*47*10 | 13.59 |
| 12*32*7 | 9.71 |
| 17*32*7 | 9.71 |
| 20*40*8 | 11.65 |
| 24*40*10 | 11.65 |
| 12*32*10 | 9.71 |
| 17*35*7 | 10.68 |
| 20*40*10 | 11.65 |
| 24*42*7 | 11.65 |
| 14*22*5 | 7.77 |
| 17*35*8 | 10.68 |
| 20*42*5 | 11.65 |
| 24*42*10 | 11.65 |
| 14*24*7 | 7.77 |
| 17*35*10 | 10.68 |
| 20*42*7 | 11.65 |
| 24*47*7 | 15.53 |
| 14*25*7 | 7.77 |
| 17*40*7 | 11.65 |
| 20*42*8 | 11.65 |
| 24*47*10 | 15.53 |
| 14*27*7 | 8.73 |
| 17*40*8 | 11.65 |
| 20*42*10 | 11.65 |
| 25*33*7 | 10.68 |
| 14*28*5 | 8.73 |
| 17*40*10 | 11.65 |
| 20*45*8 | 13.59 |
| 25*34*7 | 10.68 |
| 14*28*7 | 8.73 |
| 18*30*7 | 8.73 |
| 20*45*10 | 13.59 |
| 25*35*7 | 10.68 |
| 14*28*8 | 8.73 |
| 18*30*8 | 8.73 |
| 20*47*7 | 13.59 |
| 25*35*10 | 10.68 |
| 14*30*7 | 8.73 |
| 18*30*10 | 8.73 |
| 20*47*8 | 13.59 |
| 25*37*7 | 11.65 |
| 14*30*10 | 8.73 |
| 18*35*5 | 9.71 |
| 20*47*10 | 13.59 |
| 25*38*7 | 11.65 |
| 14*35*8 | 10.67 |
| 18*35*8 | 10.68 |
| 20*50*8 | 14.56 |
| 25*38*8 | 11.65 |
| 14*35*10 | 10.67 |
| 18*35*10 | 10.68 |
| 20*50*10 | 14.56 |
| 25*38*10 | 11.65 |
| 15*25*5 | 7.77 |
| 18*40*8 | 11.65 |
| 20*52*7 | 14.56 |
| 25*40*5 | 11.65 |
| 15*25*7 | 7.77 |
| 18*40*10 | 11.65 |
| 20*52*8 | 14.56 |
| 25*40*7 | 11.65 |
| 15*26*7 | 7.77 |
| 18*45*10 | 13.59 |
| 20*52*10 | 14.56 |
| 25*40*8 | 11.65 |
| 15*30*7 | 8.73 |
| 19*30*7 | 8.73 |
| 22*32*7 | 10.68 |
| 25*40*10 | 11.65 |
| 15*30*8 | 8.73 |
| 19*30*10 | 8.73 |
| 22*35*7 | 10.68 |
| 25*42*7 | 11.65 |
| Material available | NBR, HNBR(H), HNBR(X), EPDM, NR,SBR, ACM,CFR,VMQ, CR,FKM(V), FFKM(K), PU, ECO,AFLAC |
| Mold | We can make mold by ourselves with competitive price,
And if the quantity is up to 1000 pcs, the mold is for free.
And more, for various oil seal, we have more than 10,000 molds in stock. |
| Size range | From 10mm to 2000mm Diameter
|
| Weight range of products | 5g to 20kg |
| Colors available | Red, orange, yellow, green, blue, gray, purple, brown, milk color |
| processing equipment | Rubber molding machines, rubber injection machines, extruding machines. |
