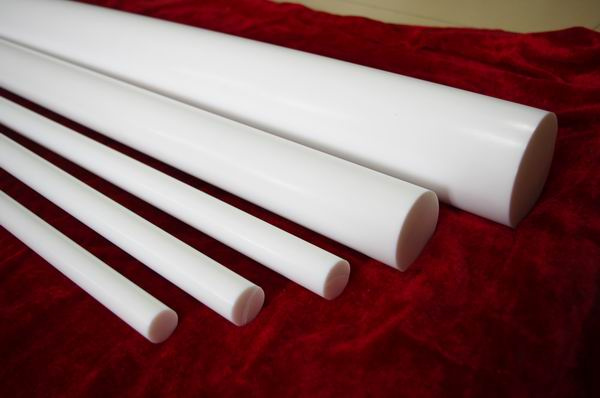

PTFE ROD: Which is manufactured with virgin resin by ram extrusion or compressing moulding.
PERFORMANCE:
Wide service temperature range(-180 - +260), high chemical resistance, high insulation, non-stick, low friction and long life
APPLICATRON:
Machine parts such as, connectors, terminals and other electrical parts.
Detail sizes are included in appendix pages
SPECIFICATION:
TypeDiameter(mm)Length(mm)
Pressed Rod2~4Produced under requirements
Extruded Rod5~120500~3000
Die Pressed Rod55~300100~300
TECHNICAL DATA:
Technical dataUnitResult
Apparent densityg/cm32.10-2.30
Tensile strength(min)MPa14.0
Ultimate elongation(min)%140
Highly fashionable styles, reliable quality and attractive prices are our advantages. We particularly cherish cooperation with customers. We deeply believe that these factors enable us to be a long-standing business enterprise in today''s competitive markets. We spare no effort in meeting each customer''s requirements and winning their satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
