Characteristics:
1. Die head is lauer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer Design is rational convenience, reliable, safe in operation.
3. Various functional parts may be installed to the lies, such as length counting device, verdtical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Use:

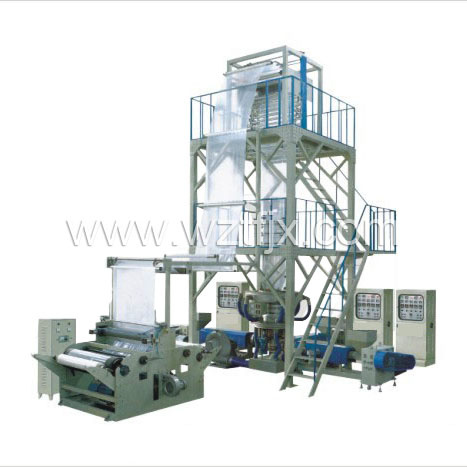

The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in Home. It is optimum Designed on the trounds of preference of analogous lines in foreign and Home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, Paby horzontal extrusion up blown. The film has good in sulation, for instance holding temperature, antihu-mid, antibreeze, anti-rain, anti-rorst, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
| | Model | SJ-45×3 | SJ-50×3 | SJ-55×3 | SJ-65×3 | SJ-75×3 |
| Performance | The use of resin | PE \HDPE\LDPE\LLDPE |
| Maximum width | 1000mm | 1200mm | 1400mm | 1600mm | 2000mm |
| Thickness of the product | 0.02-0.15mm |
| Out of traffic | 120kg | 150kg | 180kg | 210kg | 250kg |
| Screw diameter | φ45mm | φ50mm | φ55mm | φ65mm | φ75mm |
| Screw aspect ratio | 30:1 |
Squeeze
A
Machine | Screw Materials Bowl material | 38CRMOALA |
| Bowl to cool | 2 | 2 | 2 | 3 | 4 |
| Drive horsepower | 11kw | 15kw | 22kw | 30kw | 45kw |
| Electric capacity | 28kw | 34kw | 42kw | 50kw | 58kw |
| Dies | φ200 | φ250 | φ300 | φ350 | φ450 |
| | Blower | 3kw | 4kw | 5.5kw | 5.5kw | 7.5kw |
| Temperature Control | 14 | 14 | 14 | 15 | 18 |
Get cited
Device | Get round primer | φ140×1100 | φ140×1300 |
φ165×1500
| φ165×1800 | φ180×2200 |
| Cited take power | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 3kw |
| Forms | Lift |
| Cited the speed of access | 10-80 | 10-80 | 10-80 | 10-60 | 10-60 |
Take-up
Device | Forms The diameter of the largest take-up
Power take-up | Friction-or-take-up center
600mm
10N/m |
| | Installation size
Information counter installed | 5200×2800×5800 | 5500×3000×6200 | 6500×34000×6800 | 7000×4200×7200 | 8500×5000×7800 |
Ruian Taifeng Packaging Machinery Factory, as professional manufacturer of Plastic Package Machinery and situated in Lidong Economic zone, Ruian City, China, was established in 1985. It consists of Technical Development Department, Manufacturing Department, Sales Department and After Sell Department.
Our main products include: PE Blowing Film Extruder, PP Blowing Film Extruder, computer bag making machine, , PVC/PE casting film machine, computer slitting machine, crushing machine and such serious, more than 100 kinds.
Factory "to the quality of survival, in good faith and development" for the purpose, favorable price and excellent after-sales service, the products sell well all over the country and exported to Southeast Asia and other countries and regions, well received by the customer support and trust. Enterprise development has entered a new era, we will provide you with better quality of new products, warm, considerate and efficient after-sales service, benefits, reasonable price, product warranty for one year, we will always at your service, allowing users to Friends satisfaction, rest assured that I plant the common aspiration of all the staff. At home and abroad wholeheartedly welcome new and old customers coming guidance, consultation, negotiation and patronage.
