JACI MOULD is very professional in thin wall food container moulds manufacturing.the container wall thickness can be 0.4mmto 0.55mm for multi-cavities,we can also make thin wall container mould suitable for label, in which the prefabricated plastic label is positioned directly into the mould by a special handling robot. Guarantee the moulds life 1million,using steel S136 with hardness 42-48 after vacuum heating treatment.
in-mould-label mould, Hardened steel enriched with chromium enabling fast cycling, Mould long life and reliability.Long-lasting final product high-quality for large production

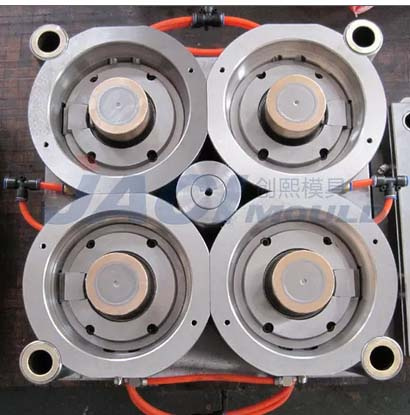

Product name :1Liter IML container MOULD
product introducion:%100 leakage proof container prodce with IML (in mould labeling) technology.
I-M-L Mould Application:.Food package IML system
Injection mold/mould Cavities:4cavity
Mould steel:Sweden S136 Pretreat52-55HRC
Avaliable mould base:LKM DIN1.2312
Standard: CopyDME,HASCO
Hot runner:4point Yudo hot runner valve system
Life time:>:5M time.
Delivery time:60days
Injection cycle time:6seconds
The country of mould'client:South Africa
Jaci mould with so many year in mould industry, is one of the most professional plastic mould manufactures in China. Consistently providing high quality, precise tooling and satisfactory service domestic and overseas, jaci has developed main markets including Spain, Mexico, Brazil, Russia, South Africa, Chile, Colombia, Venezuela, Israel, Iran and so on.
Jaci mould is proficient in mould design and reading drawings. We make full use of high techniques such as PRO-e, solid works, u. G, and auto-CAD for mould and plastic parts design and keep technical communication with clients. Jaci has summarized specific experience during its long running time.
Jaci also has developed a set of professional management system, which is perfectly applied to mould design and parts quality control, mould tooling and processing control, mould operation quality control, etc. It makes jaci able to offer high qualified mould with reasonable price, and short delivery time.
Jaci is capable to produce different kinds of large size, deep cavity or thin wall precise mould. Our products include: Automotive mould, home appliance mould, dust bin and other sized bin moulds, pipe fitting mould, crate mould, chair mould, thin wall injection mould, iml mould, , air cup mould and so on.
Jaci sincerely invites you to visit our company and establish long-lasting business relationship with us.
