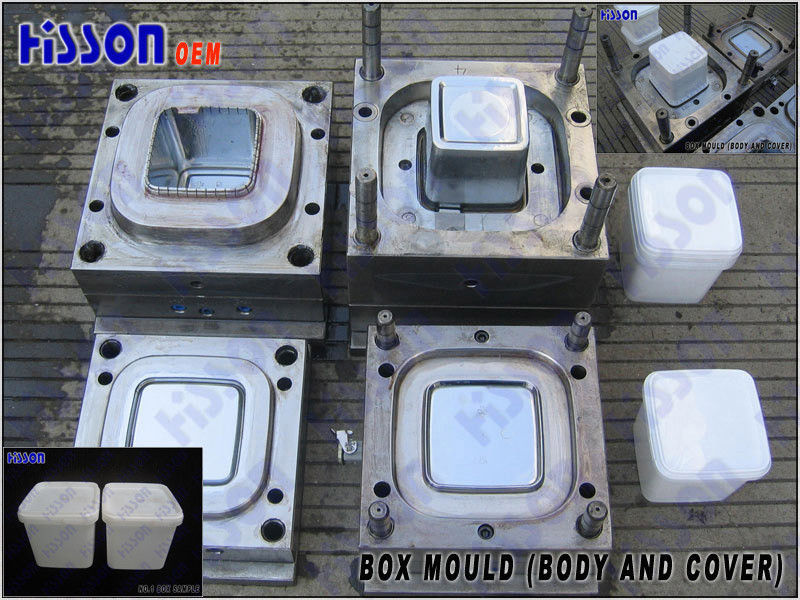

Thin Wall Plastic Box Injection Mold for Food Storage

Thin Wall Plastic Box Injection Mold for Food Storage
Price: US $ 1000-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union



Application:
1.3L Storage BoxCavities Number:1 Cavity
Core And Cavity Material:718HInjection System:Hot Runner
Material:PEProduct Name:Home Appliance Mold


1 Cavity 1.3L Plastic Box 718H Steel Home Appliance Mold For Food Storage

Quick Detail:

1.3L Box for Food Storage
1 Cavity
Core And Cavity Material:718H/2316
Hot Runner
 Mould Introduction:

Material to be used : PP/ PE
Anual Production Preview : >1.000.000
Number of cavities : 1-Cavity
Type of injection system : Hot Runner System with Single-point Temperature Control, or Cold runner
Type of gating : Center of the part / Cosmetic Gate
Hot runnersupplied by : Hot runner made by MICOTEC (Shengzhen China)
Mould base steel : ASSAB UHB 11 or Equivalent Normalized 200 HB
Mould Base Parting Line Plates : DIN 1.2085 (Stainless) Pre-hardened 30/32 HRC
Cavity Steel : 718H/2316 Hardened 55 HRC
Core steel : 718H/2316 (Stainless) Hardened 55 HRC
Stripper Plate Inserts Steel : DIN 1.2343 (AISI H11) Hardened 54/56 HRC
Slides Steel: DIN 1.2083 (Stainless) Hardened 50/52 HRC
Type of Ejection: Stripping Plate + Unscrewing motor
Type of Finish (Cavity side) : SPI A3 (Intermediate Mirror Polish)
Type of Finish (Core side) : SPI B2 (Sandpaper Finish Grit 400)
Engravings: Part Number/Cavity Nr./Logo
Prod Model: 1-Cavity
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cavity: 1/2/4/6/8
Material: PP
Ejection: Force
Mould Steel: 718h/2316/S316
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Home Use
Installation: Fixed
Plastic Material: PP
Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.

We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.

Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.

In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.

We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
