Thread Rolling Machine (Parallel Thread)

Thread Rolling Machine (Parallel Thread)
Price: Negotiable
Min Order: 1

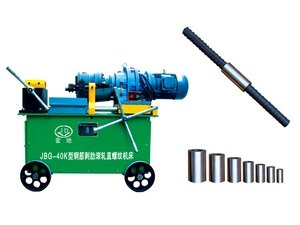

Thread rolling machine
Thread rolling machine is used to make parallel thread on rebar with dia 14-40mm, we have kinds of JBG-40K JBG-40D JBG-40E JBG-40F JBG-50 thread rolling machine, difference of the machines are just the thread length. Our thread rolling machine can make thread length max 300mm. And all the machine parts are produced by our company, so threads are with high precision. It's easy to operate and high speed to make parallel thread in construction site.
Thread rolling machine technical data
JBG-40K
It not only adjusts freely in the range 14-40mm using the rib-stripping plate but also eliminates the problem that the rebar head with screw head often becomes bigger, further guaranteeing the construction quality.
Electric motor power: 4KW gross weight: 500KG
Work voltage: 3-380V 50Hz dimension: 1250*1050*750mm
Rotate speed: 60r/min steel bar standard: 14-40mm
Thread pitch: 2.5 3.0 3.5 max thread length: 65mm
JBG-40D
It is easy to adjust; It adds the screw pitch angle mechanism. It is especially fit for the rebar splicing in bridge-piles and tunnel construction
Electric motor power: 4KW gross weight: 450KG
Work voltage: 3-380V 50Hz dimension: 1250*1050*750mm
Rotate speed: 60r/min steel bar standard: 14-40mm
Thread pitch: 2.5 3.0 3.5 max thread length: 100mm
JBG-40E
It is safe to use and designed reasonable in construction operating. It can make much longer parallel threads on head of rebar.
Electric motor power: 4KW Work voltage: 3-380V 50Hz
Rotate speed: 60r/min steel bar standard: 14-40mm
Thread pitch: 2.5 3.0 3.5 max thread length: 300mm
JBG-40F
It is safe to use and designed reasonable in construction operating. It can make much longer parallel threads on head of rebar.
Electric motor power: 4KW work voltage: 3-380V 50Hz
Rotate speed: 60r/min steel bar standard: 14-40mm
Thread pitch: 2.5 3.0 3.5 max thread length: 200mm
JBG-50
It can make parallel thread from diameter 12-50mm.
Electric motor power: 4KW work voltage: 3-380V 50Hz
Rotate speed: 60r/min steel bar standard: 12-50mm
Thread pitch: 2.5 3.0 3.5 max thread length: 100mm
Client's special demands are available.
  Technical  data
  Electric  motor  power Gross  weight Work  voltage Rotate  Speed Steel  bar  standard
Thread  pitch
Max
thread  length
JBG-40K 4KW 500KG 3-380V    50HZ 60r/min 14-40mm 2.5mm
3.0mm
3.5mm
65mm
JBG-40D 4KW 500KG 3-380V    50HZ 60r/min 14-40mm 2.5mm
3.0mm
3.5mm
100mm
JBG-40F 4KW 500KG 3-380V    50HZ 60r/min 14-40mm 2.5mm
3.0mm
3.5mm
200mm
JBG-40E 4KW 500KG 3-380V    50HZ 60r/min 14-40mm 2.5mm
3.0mm
3.5mm
300mm
JBG-50 4KW 500KG 3-380V    50HZ 60r/min 12-50mm 2.5mm
3.0mm
3.5mm
100mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Voltage: 3-380v 50Hz
Electrical Motor Power: 4kw
Thread Pitch: 2.5mm 3.0mm 3.5mm
Suit For Rebar Diameter: 12-50mm
Type: Rolling Thread on Rebar
Baoding Jindi Machinery Co., Ltd was established in 2002 with registered capital of 10 million RMB yuan.As a professional manufacturer of rebar mechanical splicing products, we are specializing in the production of rebar coupler, parallel thread rolling machine and related accessories.Our products are domestically in a leading position in the field of construction.

Now our products have passed the authentication of ISO 9001 quality system.We can produce 4000 sets of various machines, 40 million splicing couplers, which have been widely used in many major projects both at home and abroad, such as Fuqing Nuclear Power Plant, Shanghai light rail and so on.In order to offer better after-sales service, we have set up many branches, respectively in Beijing, Tianjin, Shanghai, Guangzhou, Xiamen, Dalian, Yantai and so on.

In order to meet the strong construction demand (including civilian, industry, tunnel, bridge, Hydraulic construction fields), we are working hard to make our products more economical, environment-friendly and efficient.With high quality and satisfactory after-sales service, our products have enjoyed a good reputation in the world market.In the future, we will do our utmost to make it better and more perfect and to build up a famous "JINDI" brand in this field.
