Product Description:

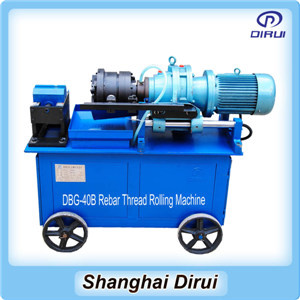

Shanghai Dirui Rebar Parallel Thread Rolling Machine DBG-40B is designed for
processing parallel threads for rebar mechanical connection, can process HRB335, HRB400, HRB500 reinforced bar with diameter 14--40mm;The max thread length is 90mm; The thread pitch is 2.0-3.5mm.
Technical Parameters:
| Model: | DBG-40B | Thread Angle | 60 °/75° |
| Motor Power: | 4KW 8A | Thread Pitch | 2.0-3.5MM |
| Voltage: | 3-380V 50HZ | Rebar Diameter: | 14-40MM |
| Spindle Speed: | 48-82 r/min | Max Thread Length: | 90MM |
| Dimension: | 1M*0.7M*0.9M | Net Weight: | 400kgs |
Product Features
1.Peel the rebar rib and process thread on rebar end can be made in one step.
2.Left-handed and Right-handed thread can be processed.
3.Simple opeation, good quality, realiable working, and high efficiency.
4.Rebar dia for 14-40mm can be adjusted
5.600-900 heads per day.
Main Spare Parts:
We manufacture all spare parts by our own factory in Changshu Jiangsu, the main
spare parts are as following:
| Thread Roller | 3pcs |
| Eccentric shaft | 3pcs |
| Blade | 4pcs |
| Gasket | 6pcs |
For each machine, except all the accessories it installed, we send to customer a set of roller for free!
We use Famous Brand Motor and Decelerator:
| Motor Power: | 4KW 8A | Spindle Speed: | 48-82 r/min |
| Spindle Speed: | 48-82 r/min | Max Output Torque: | 520kn |
| Voltage: | 3-380V 50HZ | Cooling pump power: | 40W |
Work procedure
(1) Strip rebar rib first.
(2) Roll parallel thread on rebar end.
(3) Splice two pieces of threaded rebar with coupler.
Package&Trade Terms
| MOQ: | 1Set |
| Package: | Wooden Cases(135*80*116cm) |
| Delivery Terms: | FOB, CIF, CFR |
| Dlivery Time: | 7days for Our Design. |
| Payment type: | TT, L/C |
| Supply Ability: | 500sets per month |
| Port: | Shanghai |
Company introduce:
Found in 2003, Shanghai Dirui Reinforcing Project Co., Ltd is specialized in manufacturing
Rebar Couplers, Rebar Threading Machines, processing equipment and parts.It headquarters in
Shanghai China with three plants in Shanghai, Jiangsu and Shandong, with total area of 36,000
square meters, construction area of 28,000 square meters, staff 300 people and over 50
technicians.In 2008 Dirui passed the certificate of ISO9001:2008.
So far, our products are highly popular in global market like Vietnam, India, Russia, Ukraine, South Korea, Singapore, Indonesia, Brunei, Thailand, Malaysia, UAE, Saudi Arabia, Iran, Mexico, America, Brazil, Ghana etc.
