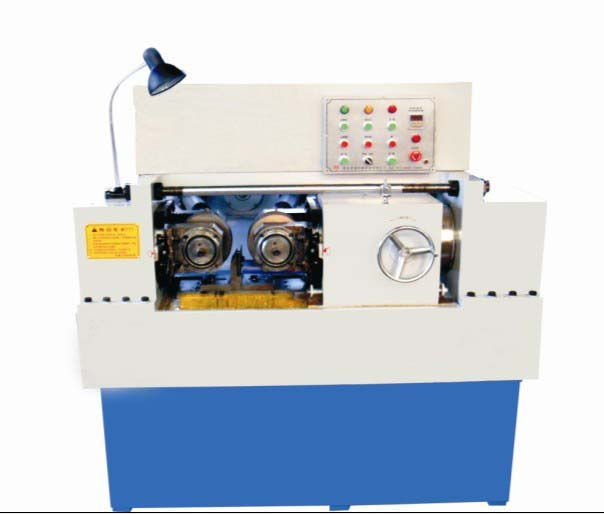

Thread Rolling Machine SPR-250
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
This model mainly is used for pressing precision standard parts of external thread and high strength, including regular thread, trapezoid thread and modulax thread. The objective material to be processed inchcde carbon steel, alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm2
|
Pressure of roller max: |
260KN |
|
Working diameter: |
100mm |
|
OD of the roller: |
210mm |
|
BD of roller: |
75mm |
|
Roller width max: |
120mm |
|
Center distance of main shaft: |
150-300mm |
|
Dip angle of main shaft: |
+-15degree |
|
Rotary speed of main shaft: |
16, 26, 38, 90 (r/min) |
|
Open thread length (plus protection) |
|
|
Active power: |
11kw |
|
Hydraulic power: |
5.5kw |
|
Cooling power: |
125kw |
|
Weight: |
3200kg |
|
Size: |
2450*1780*1670mm |
| Prod Model: |
SPR-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Xingtai Spiry Co., Ltd. is a one-top of Machine, Rubber parts, and Steel file integrating the research, manufacture, and import & export in China.
We are occur Thread Rolling Machine, and Necking Machine. Thread Rolling machine is widely used in metal process, can be finished the screw thread easily and accurately. Necking machine could enhance the density of press steel so that tensile strength of material get raised. The plastic processing and beam toughness is remained and make the intensity of cypress and shank unanimous, which deal with the drawback of diminished stretching resistance and beam toughness caused by the lathe peeling. It will save the material, let the metal as your expect size.
We are professional manufacture of Rubber product in China. The material content NBR EPDM NR CR SI SBR FPM HNBR ACM AEM and so on. We can offer ring, blanket, cover, bracket, and so on. It used as the seal, dust prevention, cushion, support, protect and so on. It is used in car, truck, engineering equipment, machine and so onOEM service is welcome. You can choose our trade mark or yourself trade mark.
Steel File is the accuracy process tools widely use in metal, wood, agriculture and so on. Our factory is locate in Steel File home town in China--NanHe town. Where is the main steel base of China. We can product nearly all of kinds steel files with the different material you want. We enjoy the long time of the product experience, we can control the grain, sharp easily. We can also offer OEM service.
Our sales net has been in all-round areas, such as meltalurgy, petrochemical industry, grind machine, electric machinary, machine tool, diesel oil machine, reducing drive, light industry machine, and it has owned great honor from customers and agreement from industry. In the new century, we will still per suit quality products and fine services, and we will try our best to supply satisfied axletree to customers.
